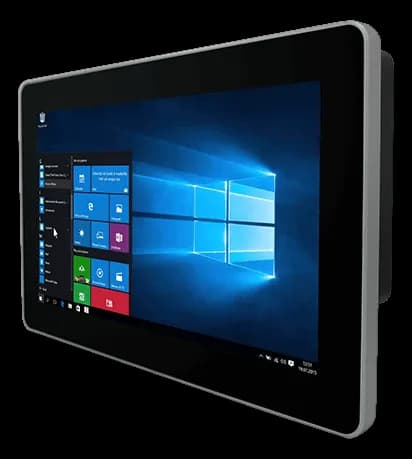

W10IB3S-GSH210.1" fanless rugged panel PC with IP65 rating
- Manufacturer
W10IB3S-GSH2 is a Winmate rugged panel PC for compact machine-side HMI and for mobile equipment, with an aluminum chassis and fanless cooling for continuous service.
The features that set it apart are DC power with a 9~36 V input and environmental tolerance, with humidity from 10 to 95% and storage from -30 to 60 °C. The display contrast ratio is 800 and certifications include CE and FCC.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- TPM: TPM 2.0
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) GB8GB GB(optional) |
|---|
| Storage | 128GB (Default)256GB(optional)512GB(optional) |
|---|
| Display size | 10.1 ″ |
|---|---|
| Resolution | 1280x800 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(default) |
| Contrast ratio | 800:1 |
| Viewing angle | 85,85,85,85 |
| Active area | 216.96 × 135.6 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type)1× Intel® Gigabit Ethernet Controller |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232/422/485 (Default RS232)(M12 type) |
| Other I/O | 1× Power Button · 1× Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountPanel Mount(optional) |
|---|---|
| Dimensions | 263.28 × 172 × 40.2 mm |
| Chassis material | alluminio |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | CEMIL-STD-810FCC |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
