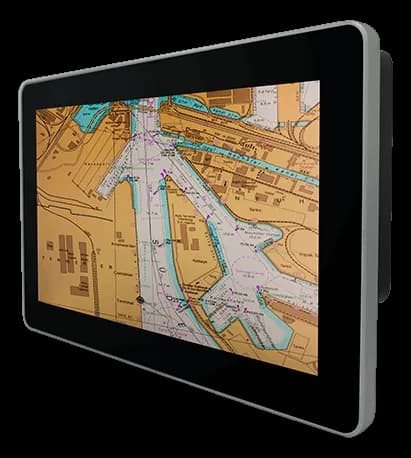

W10IB3S-MRH210.1" fanless panel PC with DNV / IEC 60945 certification for marine environments
- Manufacturer
W10IB3S-MRH2 is an industrial panel PC with a 10.1" display and a capacitive touchscreen, based on an Intel Celeron/Pentium platform and manageable with Windows 10 IoT or Linux. The metal chassis with VESA mounting suits it to integration in cabinets and at operator stations where high protection against dust and liquids is required.
DNV / IEC 60945 certification defines its use in marine and naval contexts. The wide-range 9~36 V DC power input and fanless cooling support installation in environments with vibration and humidity up to 95%, without moving parts subject to wear.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- Memory: 4GB(Default) (Default) 8GB (Optional) GB
- Display size: 10.1 ″
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB(Default) (Default) 8GB (Optional) GB8GB GB(optional) |
|---|
| Storage | 512GB SSD(optional · SSD/HDD)128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional)(SSD/HDD)256GB SSD(optional · SSD/HDD) |
|---|
| Display size | 10.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 800:1 |
| Viewing angle | 85,85,85,85 |
| Active area | 216.96 × 135.6 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Ethernet ports | 2× Intel Ethernet Controller1× GbE (M12) |
|---|---|
| USB ports | 1× USB 2.0 (M12) |
| Serial interfaces | 2× RS-422 (M12) |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 30 W |
| Mounting | VESA Mount |
|---|---|
| Weight | 2.9 kg |
| Chassis material | metallo |
| IP rating | Front IP66Full IP65 |
|---|---|
| Cooling | Fanless |
| Certifications | CEFCCDNV / IEC 60945 |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
