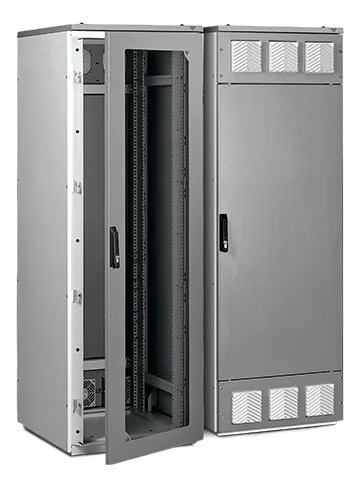

VERAK IP19″ Floor-Standing Rack Cabinet with IP65 Protection Against Dust and Water

Manufacturer

VERAK IP is the floor-standing cabinet for industrial and electronic telecommunications and networking, where dust and water must be kept out of the cabinet.

The 2 mm thick steel frame provides strength and rigidity, with a static load capacity of 1000 Kg. The doors, in glass or metal, are reversible without affecting the IP seal; the closing mechanism with wedge gasket and four-point tilting handle ensures the integrity of the seal. Optional 5U panels create an airflow to dissipate heat: in that case protection drops to IP54.

Request information Full specifications ↓

Technical data

Features

Frame structure composed of 2 end frames and 4 vertical uprights
Static load capacity up to 1000 Kg evenly distributed
Front and rear adjustable 19" rack uprights compliant with IEC60297
Front lateral 19" reducers (800 mm wide rack) for vertical cable management, cable pass-through slots and provision for mounting cable management accessories
Front glass door with metal frame and single rear metal door, tilting handle with manual lock and 4-point closing system. Optional front metal door
Customizable rear section with reduced doors or introduction of IP54 ventilation panels
Easily removable side panels with captive screw fasteners
Availability of configurations prepared with side or roof-mounted air conditioners, end frames and 4 vertical uprights
Optional 100 mm base
Height-adjustable feet
Optional wheels with load capacity up to 250 Kg
"Additional bay" versions prepared for coupling
IP65 certification, advanced dust and water protection
Provision for mounting a complete grounding set in compliance with EN 60950 standard

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7035Light grey
RAL 7037Dusty grey

Technical specifications

Rack units	42 U47 U27 U37 U

Dimensions	L 600 / 800 mm · P 689 / 889 / 989 mm
Chassis material	acciaio

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

VERAK® IP65 PRIMARY
Versione standard – Larghezza 600 mm · Porta anteriore a vetro
VERAK® IP54 PRIMARY
Versione standard – Larghezza 600 mm · Porta posteriore e ventilazione forzata
VERAK® IP54
Versione configurata – Larghezza 800 mm · Ventilazione laterale forzata – RAL 9011
VERAK® IP54
Versione configurata – Larghezza 800 mm · Porta posteriore e ventilazione forzata – RAL 9005

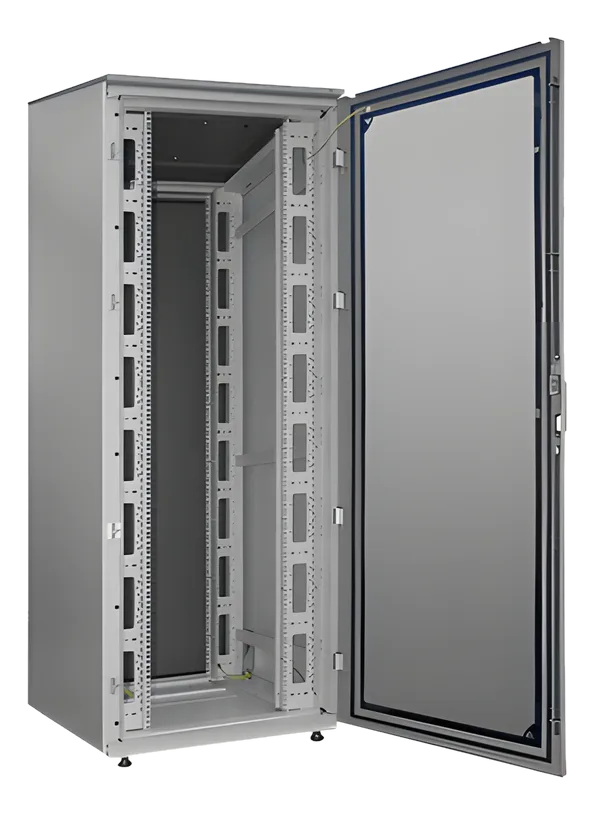

VERAK® IP65
Versione configurata – Larghezza 800 mm · Armadio con profondità 1000 mm
VERAK® IP54
Versione configurata – Larghezza 600 mm · Versione Co-Location e tastiera scorrevole
VERAK® IP54
Versione configurata – Larghezza 600 mm · Pannello posteriore e ventilazione forzata
VERAK® IP54
Versione configurata – Larghezza 600 mm · Pannello posteriore e ventilazione forzata

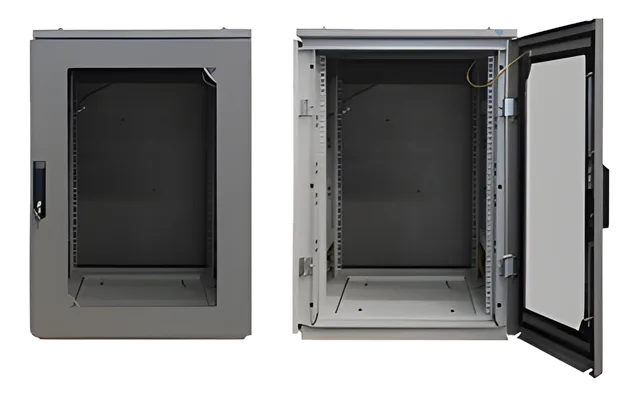

VERAK® IP65
Versione configurata – Larghezza 600 mm · Esecuzione da muro armadio da 17U

Documentation

DatasheetPDF · 300 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT585-565025	Frame, 27U, 600 x 600 mm (IP65)	27 U	600 x 600 mm (L x P)
VT588-790300	VERAK IP65 cabinet, 27U, 600 x 600 mm, full-length rear door	27 U	600 x 600 mm (L x P)
VT588-790400	VERAK IP54 cabinet, 27U, 600 x 600 mm, reduced door and forced ventilation	27 U	600 x 600 mm (L x P)
VT585-565041	Frame, 37U, 600 x 600 mm (IP65)	37 U	600 x 600 mm (L x P)
VT585-565042	Frame, 37U, 600 x 800 mm (IP65)	37 U	600 x 800 mm (L x P)
VT588-790301	VERAK IP65 cabinet, 37U, 600 x 600 mm, full-length rear door	37 U	600 x 600 mm (L x P)
VT588-790302	VERAK IP65 cabinet, 37U, 600 x 800 mm, full-length rear door	37 U	600 x 800 mm (L x P)
VT588-790401	VERAK IP54 cabinet, 37U, 600 x 600 mm, reduced door and forced ventilation	37 U	600 x 600 mm (L x P)
VT588-790402	VERAK IP54 cabinet, 37U, 600 x 800 mm, reduced door and forced ventilation	37 U	600 x 800 mm (L x P)
VT585-565049	Frame, 42U, 600 x 600 mm (IP65)	42 U	600 x 600 mm (L x P)
VT585-565050	Frame, 42U, 600 x 800 mm (IP65)	42 U	600 x 800 mm (L x P)
VT585-565053	Frame, 42U, 800 x 600 mm (IP65)	42 U	800 x 600 mm (L x P)
VT585-565054	Frame, 42U, 800 x 800 mm (IP65)	42 U	800 x 800 mm (L x P)
VT588-790303	VERAK IP65 cabinet, 42U, 600 x 600 mm, full-length rear door	42 U	600 x 600 mm (L x P)
VT588-790304	VERAK IP65 cabinet, 42U, 600 x 800 mm, full-length rear door	42 U	600 x 800 mm (L x P)
VT588-790305	VERAK IP65 cabinet, 42U, 800 x 600 mm, full-length rear door	42 U	800 x 600 mm (L x P)
VT588-790306	VERAK IP65 cabinet, 42U, 800 x 800 mm, full-length rear door	42 U	800 x 800 mm (L x P)
VT588-790403	VERAK IP54 cabinet, 42U, 600 x 600 mm, reduced door and forced ventilation	42 U	600 x 600 mm (L x P)
VT588-790404	VERAK IP54 cabinet, 42U, 600 x 800 mm, reduced door and forced ventilation	42 U	600 x 800 mm (L x P)
VT588-790405	VERAK IP54 cabinet, 42U, 800 x 600 mm, reduced door and forced ventilation	42 U	800 x 600 mm (L x P)
VT588-790406	VERAK IP54 cabinet, 42U, 800 x 800 mm, reduced door and forced ventilation	42 U	800 x 800 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	VA554-546642	Swing handle – with numeric combination lock and master key
	VA802-563495	Swing handle
	VA802-563532	Keyed lock – automatic closing (2 keys)
	VA802-563534	Blanking cam
	VA802-563610	Keyed lock – manual closing (2 keys)
	VK385-775843	Thermostat and wiring kit
	VT390-787140-B	DIN rail enclosure panel kit, 19″, RAL 7035
	VT554-545357	Cabinet bottom panel 8x10 with double guillotine-style entry, R7035
	VT554-546785	Cabinet bottom panel 6x6 with guillotine-style entry, R7035
	VT554-547159	Cabinet bottom panel 6x10 with double guillotine-style entry, R7035
	VT554-547163	Cabinet bottom panel 6x8 with guillotine-style entry, R7035
	VT554-547165	Cabinet bottom panel 8x6 with guillotine-style entry, R7035
	VT554-547167	Cabinet bottom panel 8x8 with guillotine-style entry, R7035
	VT554-547376	Leveling feet kit
	VT555-500515	Copper ground bar kit, 1U 19″, with insulators
	VT567-565244	Side panels, 27U 600 mm, IP65
	VT567-565252	Side panels, 37U 600 mm, IP65
	VT567-565253	Side panels 37U 800 mm IP65
	VT567-565256	Side panels 42U 600 mm IP65
	VT567-565257	Side panels 42U 800 mm IP65
	VT567-565320	Solid bottom plate IP65 600 x 600 mm
	VT567-565321	Solid bottom plate IP65 600 x 800 mm
	VT567-565324	Solid bottom plate IP65 800 x 600 mm
	VT567-565325	Solid bottom plate IP65 800 x 800 mm
	VT567-565357	IP coupling kit 27U 800 mm
	VT567-565366	IP coupling kit 37U 800 mm
	VT567-565369	IP coupling kit 42U 600 mm
	VT567-565370	IP coupling kit 42U 800 mm
	VT567-565408	Kit of 4 swivel casters, heavy-duty, no brake
	VT567-565409	Kit of 4 heavy-duty swivel casters, 2 with and 2 without brake
	VT567-565489	Lifting eyebolt kit
	VT567-565504	Kit of 4 Corner Brackets for Plinth
	VT567-565522	Ventilation panel kit 5U, 600 mm, 3 filters
	VT567-565523	Ventilation panel kit 5U, 800 mm, 4 filters
	VT567-565526	Ventilation panel kit 5U, 3 fans, 600 mm, filters
	VT567-565527	Ventilation panel kit 5U, 4 fans, 800 mm, filters
	VT567-565541	Metal door IP 27U 600 mm
	VT567-565542	Metal door IP 32U 600 mm
	VT567-565543	Metal door IP 37U 600 mm
	VT567-565544	Metal door IP 42U 600 mm
	VT567-565552	Metal door IP 42U 800 mm

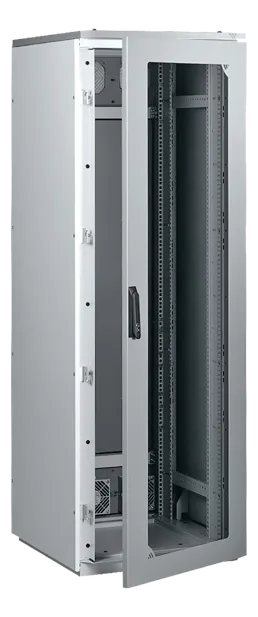

	VT567-565605	Glass door IP 27U 600 mm
	VT567-565607	Glass door IP 37U 600 mm
	VT567-565608	Glass door IP 42U 600 mm
	VT567-565616	Glass door IP 42U 800 mm
	VT567-565635	Top cover IP65 600 x 600 mm
	VT567-565636	Top cover IP65 600 x 800 mm
	VT567-565639	Top cover IP65 800 x 600 mm
	VT567-565640	Top cover IP65 800 x 800 mm
	VT567-565900	Grounding kit – type 1 – supplied pre-assembled
	VT802-343186	FIXED RAILS 770 MM RAL 7035
	VT802-343187	FIXED RAILS 870 MM RAL 7035
	VT802-553081	A4 document holder

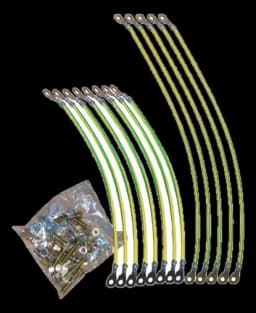

	VT802-560005	Ground kit – type 1 – supplied unassembled
	VT802-561009	FIXED RAILS 270 MM (MIN. CABINET DEPTH 400 MM) RAL 7035
	VT802-561010	FIXED RAILS 470 MM (MIN. CABINET DEPTH 600 MM) RAL 7035
	VT802-561011	FIXED RAILS 670 MM (MIN. CABINET DEPTH 800 MM) RAL 7035
	VT802-561013	Support shelves 19″ (600 mm) x 256 mm RAL 7035
	VT802-561014	Support shelves 19″ (600 mm) x 356 mm RAL 7035
	VT802-561015	Support shelves 19″ (600 mm) x 456 mm RAL 7035
	VT802-561016	Support shelves 19″ (600 mm) x 556 mm RAL 7035
	VT802-561017	Support shelves 19″ max width 800 x 256 mm RAL 7035
	VT802-561018	Support shelves 19″ max width 800 x 356 mm RAL 7035
	VT802-561019	Support shelves 19″ max width 800 x 456 mm RAL 7035
	VT802-561020	Support shelves 19″ max width 800 x 556 mm RAL 7035
	VT802-561035	Base side panel kit 600 x 600 / 800 x 600 mm
	VT802-561036	Base side panel kit 600 x 800 / 800 x 800 mm
	VT802-561038	Front and rear base closing panel 600 x 600 / 600 x 800
	VT802-561039	Front and rear base closing panel 800 x 600 / 800 x 800
	VT802-561561	FIXED RAILS 370 MM (MIN. CABINET DEPTH 500 MM) RAL 7035
	VT802-561562	FIXED RAILS 570 MM (MIN. CABINET DEPTH 700 MM) RAL 7035
	VT802-562284	Cantilever shelves 19″ x 255 mm RAL 7035
	VT802-562285	Cantilever shelves 19″ x 400 mm RAL 7035
	VT802-3635737	SLIDING SHELF FOR HEAVY LOADS 19″ x 630 MM RAL 7035
	VT802-3635758	Pull-out cantilever shelf 19″ x 400 mm for keyboard, RAL 7035
