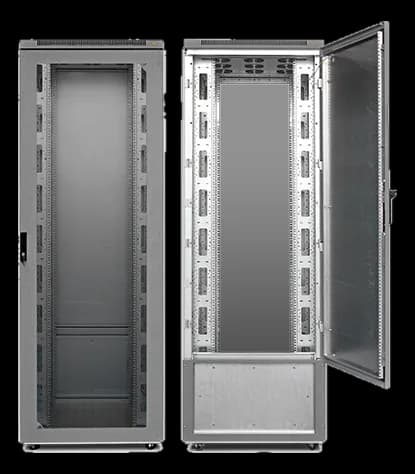

VERAK EMC/IP19″ Floor-Standing Rack Cabinet with EMC Shielding and IP65 Protection

Manufacturer

VERAK EMC/IP is the floor-standing cabinet for installations that must comply with electromagnetic compatibility requirements and operate in environments where dust and water are a concern.

It provides attenuation of over 80 dB at 100 MHz and 40 dB at 1 GHz. EMC fingers ensure electrical continuity between panels; the strips pressing on the gasket are an integral part of the vertical supports. The 2 mm steel frame gives a static load capacity of 1000 Kg. The doors, in metal or glass, are reversible; the EMC glass encloses a metal mesh between two 3 mm sheets.

Request information Full specifications ↓

Technical data

Features

Supplied already assembled and configured with accessories
Allowable static load 1000 Kg evenly distributed
Standard 19" front and rear adjustable mounting rails
Glass or metal door and removable side panels
Reduced-height metal rear door with 10U panel for connectors or cable access
Door locking system with four-point closure
Rear or bottom cable entry
Optional wheels with capacity up to 250 Kg
Specific accessories for a wide range of applications
“Additional bay” versions arranged for coupling
High RFI (radio frequency interference) attenuation
IP65 certification, advanced protection against dust and humidity
Arrangement for mounting a complete grounding set in compliance with EN 60950 standard

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7035Light grey
RAL 7037Dusty grey

Technical specifications

Rack units	27 U37 U42 U47 U

Chassis material	acciaio
Dimensions	L 600 / 800 mm · P 689 / 889 / 989 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

VERAK® EMC/IP65 PRIMARY
Versione standard – Porta anteriore in metallo, posteriore ridotta e pannello connettori 10U
VERAK® EMC/IP65
Versione standard – Porta anteriore in vetro schermato, posteriore ridotta e pannello connettori
VERAK® EMC/IP51
Versione configurata – Ventilazione forzata su porta posteriore, tetto sopraelevato di protezione.
VERAK® EMC/IP65
Versione standard – Armadio con porta a vetro in esecuzione speciale RAL 7016

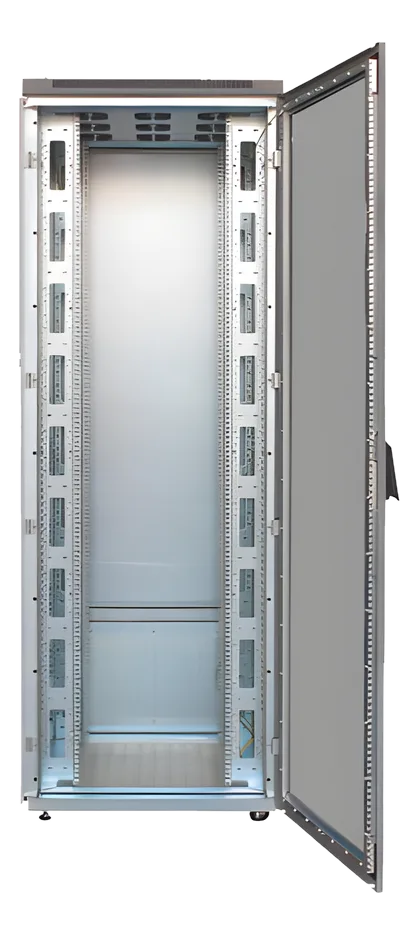

VERAK® EMC/IP51
Versione configurata – Porta anteriore con vetro schermato e cassetto di ventilazione a 9 ventole
VERAK® EMC/IP65
Versione configurata – Porta anteriore in metallo, posteriore ridotta e pannello connettori speciale 15U
VERAK® EMC/IP65
Versione configurata – Porta anteriore in vetro schermato disassato

Documentation

DatasheetPDF · 294 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT589-790607	VERAK EMC cabinet, 27U, 600 x 800 mm, with 10U panel, RAL 7016/9005 finish	—	600 x 800 mm (L x P)
VT589-790700	VERAK EMC / IP65 cabinet, 27U, 600 x 600 mm, with 10U cable-entry panel	—	600 x 600 mm (L x P)
VT589-790701	VERAK EMC / IP65 cabinet, 37U, 600 x 600 mm, with 10U cable-entry panel	—	600 x 600 mm (L x P)
VT589-790702	VERAK EMC / IP65 cabinet, 37U, 600 x 800 mm, with 10U cable-entry panel	—	600 x 800 mm (L x P)
VT589-790703	VERAK EMC / IP65 cabinet, 42U, 600 x 600 mm, with 10U cable-entry panel	—	600 x 600 mm (L x P)
VT589-790704	VERAK EMC / IP65 cabinet, 42U, 600 x 800 mm, with 10U cable-entry panel	—	600 x 800 mm (L x P)
VT589-790705	VERAK EMC / IP65 cabinet, 42U, 800 x 600 mm, with 10U cable-entry panel	—	800 x 600 mm (L x P)
VT589-790706	VERAK EMC / IP65 cabinet, 42U, 800 x 800 mm, with 10U cable-entry panel	—	800 x 800 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	VA554-546642	Swing handle – with numeric combination lock and master key
	VA802-563495	Swing handle
	VA802-563532	Keyed lock – automatic closing (2 keys)
	VA802-563534	Blanking cam
	VA802-563610	Keyed lock – manual closing (2 keys)
	VT390-787140-B	DIN rail enclosure panel kit, 19″, RAL 7035
	VT390-787964	Pull-out drawer kit, 19″ 2U, RAL 7035
	VT555-500515	Copper ground bar kit, 1U 19″, with insulators
	VT567-565408	Kit of 4 swivel casters, heavy-duty, no brake
	VT567-565409	Kit of 4 heavy-duty swivel casters, 2 with and 2 without brake
	VT567-565489	Lifting eyebolt kit
	VT567-565504	Kit of 4 Corner Brackets for Plinth
	VT567-565900	Grounding kit – type 1 – supplied pre-assembled
	VT802-343186	FIXED RAILS 770 MM RAL 7035
	VT802-343187	FIXED RAILS 870 MM RAL 7035
	VT802-343304	FIXED RAILS 270 MM (MIN. CABINET DEPTH 400 MM) CONDUCTIVE ZINC-PLATED
	VT802-343305	FIXED RAILS 370 MM (MIN. CABINET DEPTH 500 MM) CONDUCTIVE ZINC-PLATED
	VT802-343306	FIXED RAILS 470 MM (MIN. CABINET DEPTH 600 MM) CONDUCTIVE ZINC-PLATED
	VT802-343307	FIXED RAILS 570 MM (MIN. CABINET DEPTH 700 MM) CONDUCTIVE ZINC-PLATED
	VT802-343308	FIXED RAILS 670 MM (MIN. CABINET DEPTH 800 MM) CONDUCTIVE ZINC-PLATED
	VT802-343309	FIXED RAILS 770 MM CONDUCTIVE ZINC-PLATED
	VT802-343310	FIXED RAILS 870 MM CONDUCTIVE ZINC-PLATED
	VT802-553081	A4 document holder
	VT802-560005	Ground kit – type 1 – supplied unassembled
	VT802-561009	FIXED RAILS 270 MM (MIN. CABINET DEPTH 400 MM) RAL 7035
	VT802-561010	FIXED RAILS 470 MM (MIN. CABINET DEPTH 600 MM) RAL 7035
	VT802-561011	FIXED RAILS 670 MM (MIN. CABINET DEPTH 800 MM) RAL 7035
	VT802-561013	Support shelves 19″ (600 mm) x 256 mm RAL 7035
	VT802-561014	Support shelves 19″ (600 mm) x 356 mm RAL 7035
	VT802-561015	Support shelves 19″ (600 mm) x 456 mm RAL 7035
	VT802-561016	Support shelves 19″ (600 mm) x 556 mm RAL 7035
	VT802-561017	Support shelves 19″ max width 800 x 256 mm RAL 7035
	VT802-561018	Support shelves 19″ max width 800 x 356 mm RAL 7035
	VT802-561019	Support shelves 19″ max width 800 x 456 mm RAL 7035
	VT802-561020	Support shelves 19″ max width 800 x 556 mm RAL 7035
	VT802-561035	Base side panel kit 600 x 600 / 800 x 600 mm
	VT802-561036	Base side panel kit 600 x 800 / 800 x 800 mm
	VT802-561038	Front and rear base closing panel 600 x 600 / 600 x 800
	VT802-561039	Front and rear base closing panel 800 x 600 / 800 x 800
	VT802-561561	FIXED RAILS 370 MM (MIN. CABINET DEPTH 500 MM) RAL 7035
	VT802-561562	FIXED RAILS 570 MM (MIN. CABINET DEPTH 700 MM) RAL 7035
	VT802-562284	Cantilever shelves 19″ x 255 mm RAL 7035
	VT802-562285	Cantilever shelves 19″ x 400 mm RAL 7035
	VT802-3635737	SLIDING SHELF FOR HEAVY LOADS 19″ x 630 MM RAL 7035
	VT802-3635758	Pull-out cantilever shelf 19″ x 400 mm for keyboard, RAL 7035
	VT806-601222	Vented base side-wall kit, 600 x 600 / 800 x 600 mm
