VERAK EMC19″ Floor-standing rack cabinet with EMI/EMC shielding above 80 dB at 100 MHz

Manufacturer

VERAK EMC is the floor-standing cabinet for equipment that must be protected from radio-frequency interference — or that must not emit it — in defense, research and broadcast applications.

It provides attenuation above 80 dB at 100 MHz and 40 dB at 1 GHz. Stainless steel "fingers" ensure electrical continuity between panels. The 2 mm frame provides a static load capacity of 1000 Kg. Doors, in metal or glass, are reversible and feature rod closures with a four-point tilting handle, which ensures correct pressure on the fingers; the EMC glass encloses a metal mesh between two 3 mm panes.

Request information Full specifications ↓

Technical data

Features

Frame structure consisting of 2 end frames and 4 vertical uprights
Static load capacity up to 1000 Kg evenly distributed
Adjustable 19" front and rear rack uprights compliant with IEC60297
Front 19" side reducers (800 mm wide rack) for vertical cable management, cable pass-through slots and provision for mounting cable management accessories
Possibility of mounting zero "U" ventilation units in the upper section with 4 or 6 fans
Front glass door with metal frame and single rear metal door, tilting handle with manual lock and 4-point closure system. Optional front metal door
Customizable rear section with reduced doors or introduction of 10U EMC rear cable pass-through panels
Easily removable side panels with captive screw closures
Height-adjustable feet
Optional wheels with load capacity up to 250 Kg
"Additional bay" versions arranged for coupling
High RFI (radio-frequency interference) attenuation and optional IP65 protection
Provision for mounting a complete grounding set in compliance with EN 60950

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7035Light grey
RAL 7037Dusty grey
RAL 7016Anthracite grey
RAL 9005Jet black

Technical specifications

Rack units	37 U47 U42 U27 U

Chassis material	acciaio
Dimensions	L 600 / 800 mm · P 689 / 889 / 989 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

VERAK® EMC PRIMARY
Versione standard – Porta anteriore in metallo, porta posteriore ridotta e pannello connettori 10U
VERAK® EMC PRIMARY

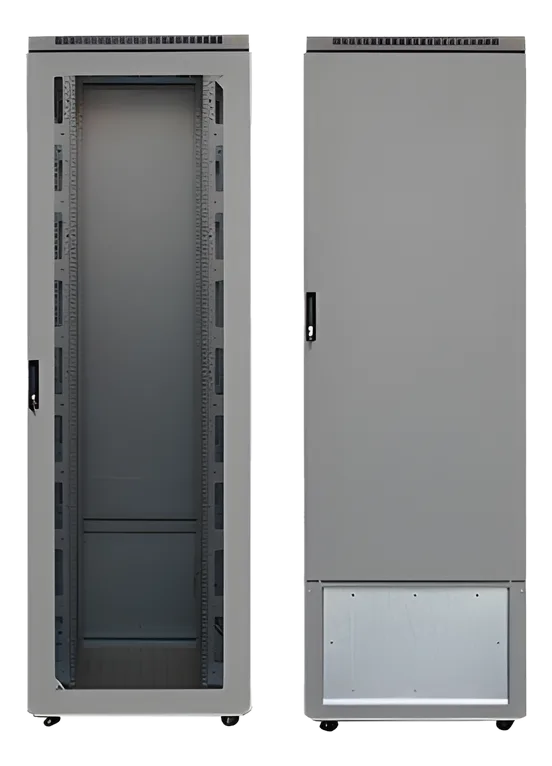

Versione standard – Porta anteriore in vetro, porta posteriore ridotta e pannello connettori 10U
VERAK® EMC

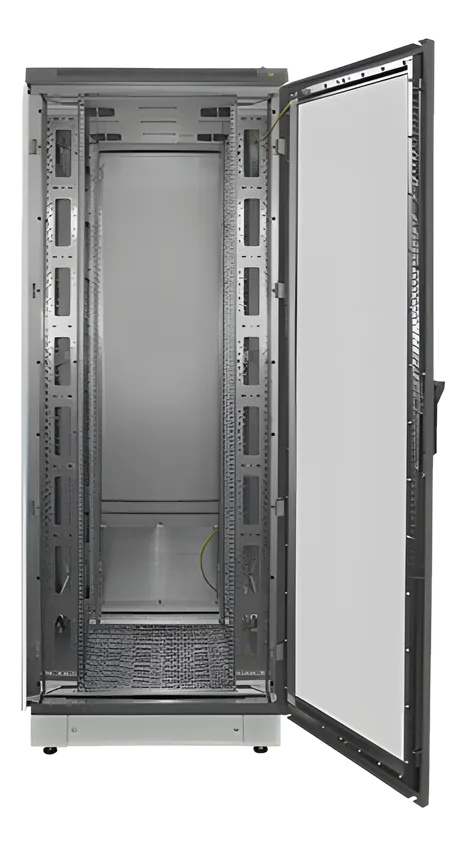

Versione configurata · 800 x 1000 mm versione con zoccolo e piedini
VERAK® EMC
Versione configurata – armadi accoppiati con porte ridotte e pannelli connettori 10U
VERAK® EMC
Versione configurata · 600 x 600 mm versione con porta posteriore ridotta e pannello connettori 10U
VERAK® EMC
Versione configurata · Porta anteriore a vetro, esecuzione in RAL 7016
VERAK® EMC

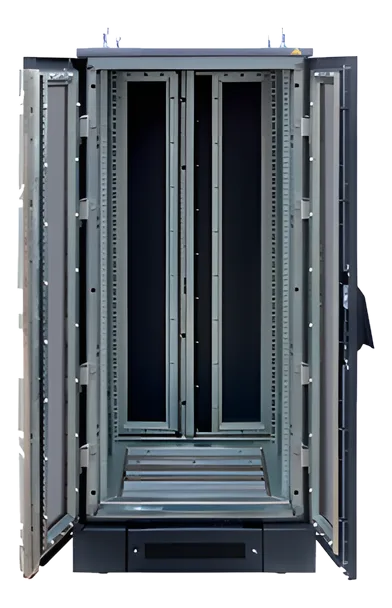

Versione configurata – Porta anteriore doppia con vetri schermati, porta posteriore doppia metallo
VERAK® EMC

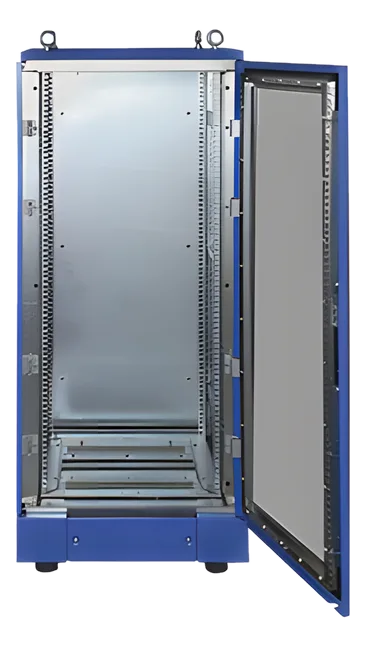

Versione configurata – Versione con zoccolo e ruote, finitura con colorazione speciale
