Armadio rack IP30 grigio scuro con porta anteriore vetrata e serratura, pannello laterale chiuso

IMAGE IP3019″ floor-standing rack cabinet with IP30 protection, 500 Kg static load capacity

Manufacturer

IMAGE IP30 is the floor-standing cabinet for environments where the ingress of solid objects must be limited, without sacrificing the versatility of a datacom rack: same structure as the IMAGE line, with IP30 protection.

The frame consists of two assemblies and two steel covers, for a maximum static load capacity of 500 Kg uniformly distributed. The 19″ uprights are fixed to the side crossmembers and adjustable in depth. The doors have a single central key lock and reversible opening; the top cover accepts a 2 or 4 fan "zero U" ventilation unit.

Request information Full specifications ↓

Technical data

Features

Frame structure composed of 2 frame assemblies and 2 covers (top / bottom)
Static load capacity of up to 500 Kg uniformly distributed
Front 19" rack uprights, adjustable, full-height and compliant with IEC60297 (rear uprights optional)
Front 19" side reducers (800 mm wide rack) for vertical cable management, cable pass-through slots and provision for mounting cable management accessories
Solid top cover fitted with two cable pass-through areas with closing plate (1 solid and 1 ventilated) or provision for a 2 or 4 fan "zero U" ventilation unit
Front glass door with metal frame, removable rear panel. Optional single or double solid metal rear door
Easily removable side panels with security lock from the outside
Base fitted with two cable pass-through areas with closing plate (1 solid and 1 ventilated) for convenient cable routing. Optional plate with cable brush grommet
Height-adjustable feet
Optional wheels with 80 Kg or 115 Kg load capacity
"Additional bay" versions prepared for coupling
Provision for mounting a complete grounding set in compliance with EN 60950

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey
RAL 9005Jet black

Technical specifications

Rack units	27 U36 U43 U47 U

Chassis material	acciaio
Dimensions	L 600 / 800 mm · P 600 / 800 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

IMAGE® IP30 PRIMARY
Porta anteriore a vetro e pannello posteriore · in metallo – Montanti frontali e posteriori
IMAGE® IP30
Versione configurata · Porta anteriore e posteriore con cornice
IMAGE® IP30

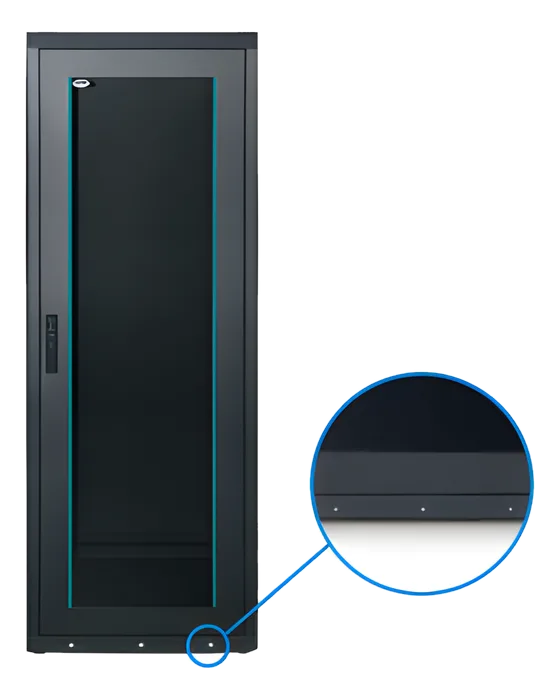

Versione configurata · Predisposizione montaggio Kit antiribaltamento
