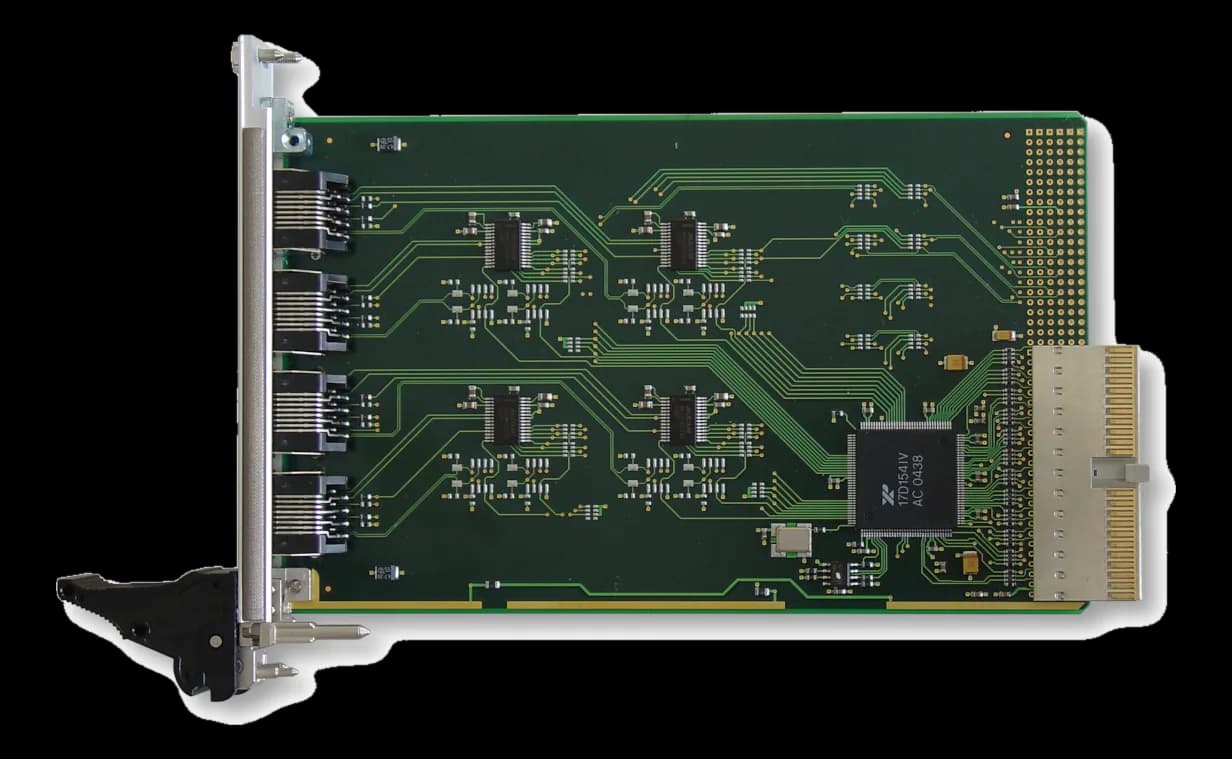

TCP463 I 4 Channel RS232/RS422 Serial Interface (RJ45) CompactPCI Module

TCP463Air cooled 4-channel 3U CompactPCI serial board

Manufacturer
Configurations: 6 available configurations

TCP463 is a serial communication board for CompactPCI racks, meant for systems that have to reach field units over a few reliable serial lines.

The board weighs 0.123 kg and is air cooled, so it needs no particular care in the thermal budget of the rack.

The configurations of the family differ in consumption, between 0.15 and 0.2 W, and in the declared MTBF, between 290,000 and 370,000 hours. An example in the catalog is TCP463-10R.

At a glance

Channels: 4 channel
Board function: Serial
Architecture standard: cPCI 3U
Power consumption: 0.15 W
Cooling: Air-cooled (VITA class)

Request information Full specifications ↓

Technical specifications

Serial interfaces	TCP463-x0R: 4 RS232 TCP463-x1R: 4 RS422 TCP463-x2R: 2 RS232 / 2 RS422(RS232: MAX3245E (or equivalent) RS422: MAX3087E (or equivalent))4 RS232(RS232: MAX3245E (or equivalent) RS422: MAX3087E (or equivalent))
Connectors	RJ45(AMP# 558250-1)

Channels	4 channel

Board function	Serial
Architecture standard	cPCI 3U
Bus interface	PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling VoltageInterrupt: All channels generate interrupts on CompactPCI interrupt INTAXR17D154 (Exar)

Power consumption	0.15 W

Weight	0.123 kg

Cooling	Air-cooled (VITA class)
Operating temperature	-40–85 °C

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Family configurations

Columns show only what changes between configurations: the rest of the sheet applies to the whole family.

Configuration (PN)	Serial interfaces	Power consumption(W)	MTBF(h)
TCP463-10R	4 RS232	0.15	370000
TCP463-11R	4 RS422	0.2	320000
TCP463-12R	2 RS232, 2 RS422	0.18	340000
TCP463-20R	4 RS232	—	350000
TCP463-21R	4 RS422	—	290000
TCP463-22R	2 RS232, 2 RS422	—	310000
