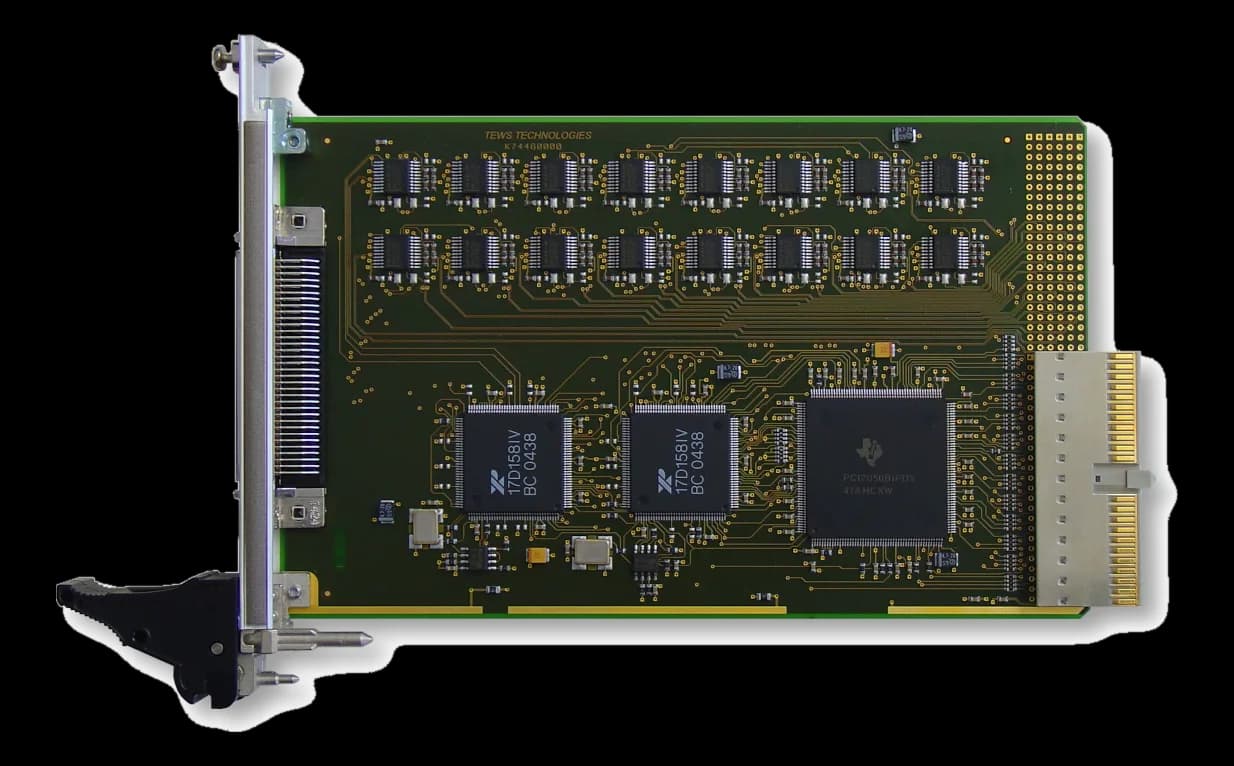

TCP46016-channel RS-232/RS-422 3U CompactPCI serial board
- Manufacturer
- Configurations
- 10 available configurations
TCP460 is a serial communication board for CompactPCI racks, used where the system has to talk to instruments and units over serial lines. The board weighs 0.135 kg and draws 0.26 W.
The versions with back I/O also bring the signals to the J2 connector of the rack, a useful answer when cabling on the front panel is not practical.
The family is available in 2, 4 or 16 channel versions; the configurations also differ in the declared MTBF, between 370,000 and 510,000 hours. An example in the catalog is TCP460-10R.
At a glance
- Channels: 2 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Power consumption: 0.26 W
- Cooling: Air-cooled (VITA class)
Technical specifications
| Serial interfaces | TCP460-x0R: 16 RS232 TCP460-x1R: 16 RS422 TCP460-x2R: 8 RS232, 8 RS422 TCP460-x3R: 12 RS232, 4 RS422 TCP460-x4R: 4 RS232, 12 RS422(RS232: MAX3225E (or equivalent) RS422: MAX3077E (or equivalent))16 RS232(RS232: MAX3225E (or equivalent) RS422: MAX3077E (or equivalent)) |
|---|---|
| Connectors | SCSI-3 (HD68)(AMP# 787082) |
| Other I/O | HD68 SCSI-3 type female connector (e.g. AMP#787082) TCP460-2xR: additional 110 pol. CompactPCI back I/O (J2) |
| Channels | 2 channel4 channel16 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | Primary PCI BusPCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling VoltagePCI2050B (Texas Instruments) |
| Power consumption | 0.26 W |
|---|
| Weight | 0.135 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Serial interfaces | MTBF(h) |
|---|---|---|
| TCP460-10R | 16 RS232 | 510000 |
| TCP460-11R | 16 RS422 | 390000 |
| TCP460-12R | 8 RS232, 8 RS422 | 440000 |
| TCP460-13R | 12 RS232, 4 RS422 | 440000 |
| TCP460-14R | 4 RS232, 12 RS422 | 390000 |
| TCP460-20R | 16 RS232 | 470000 |
| TCP460-21R | 16 RS422 | 370000 |
| TCP460-22R | 8 RS232, 8 RS422 | 410000 |
| TCP460-23R | 12 RS232, 4 RS422 | 440000 |
| TCP460-24R | 4 RS232, 12 RS422 | 390000 |
