TCP2703U CompactPCI carrier board for mezzanine modules
- Manufacturer
- Configurations
- 4 available configurations

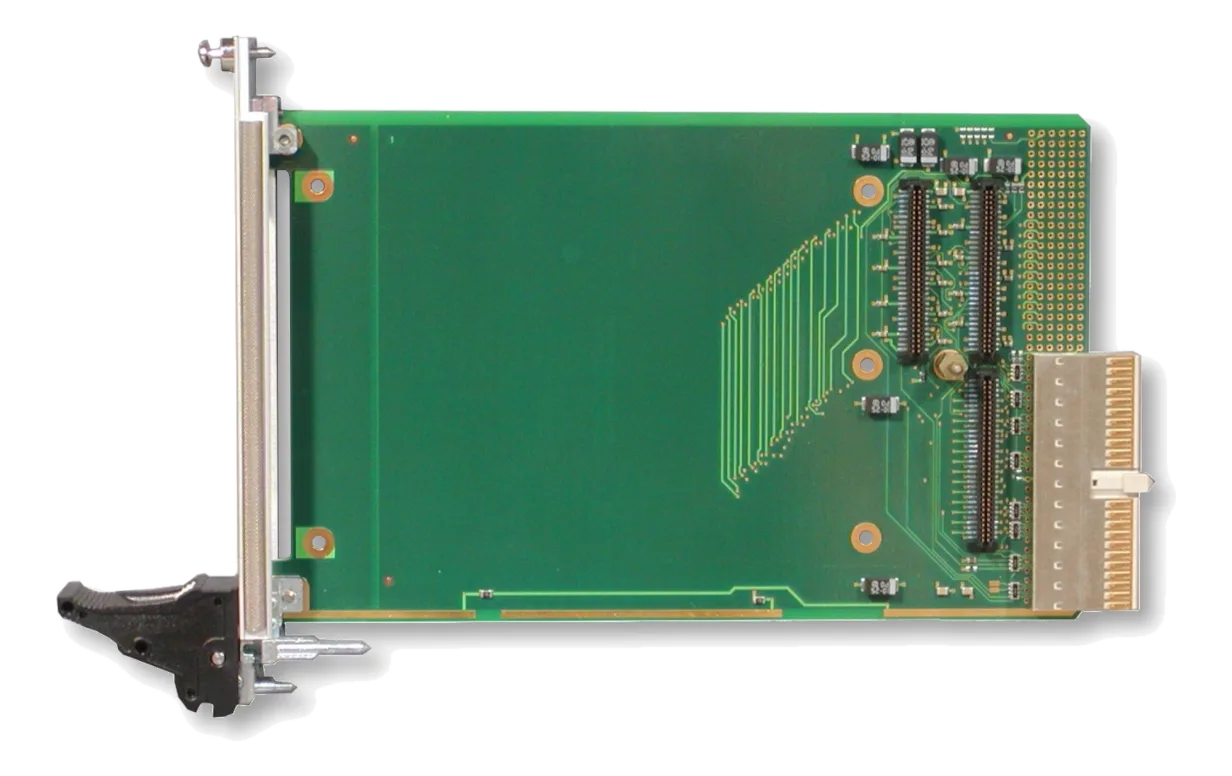

TCP270 is a carrier board in CompactPCI form factor, used to bring mezzanine modules inside an industrial rack with Eurocard mechanics.
The board measures 160 × 100 mm and weighs 0.115 kg; the MTBF declared by the manufacturer is 597,657 hours, a useful figure in the reliability calculation of the complete unit.
In the catalog the family includes 2 configurations, among them TCP270-10R.
At a glance
- Board function: Carrier
- Architecture standard: cPCI 3U
- Form factor: 3U Eurocard
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Board function | Carrier |
|---|---|
| Architecture standard | cPCI 3U |
| Form factor | 3U Eurocard |
| Bus interface | 33 MHz; 32 bit5V and 3.3V PCI I/O signaling voltage possible32 bit accesses are supported on PCI bus with PCI frequency 33MHzPCI 2.2 compliant interface, 33MHz, 32bit3.3V or 5.0V |
| Dimensions | 160 × 100 mm |
|---|---|
| Weight | 0.115 kg |
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | 40–85 °C |
| MTBF | 597657 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TCP270-10R |
| TCP270-11R |
| TCP270-50R |
| TCP270-51R |
