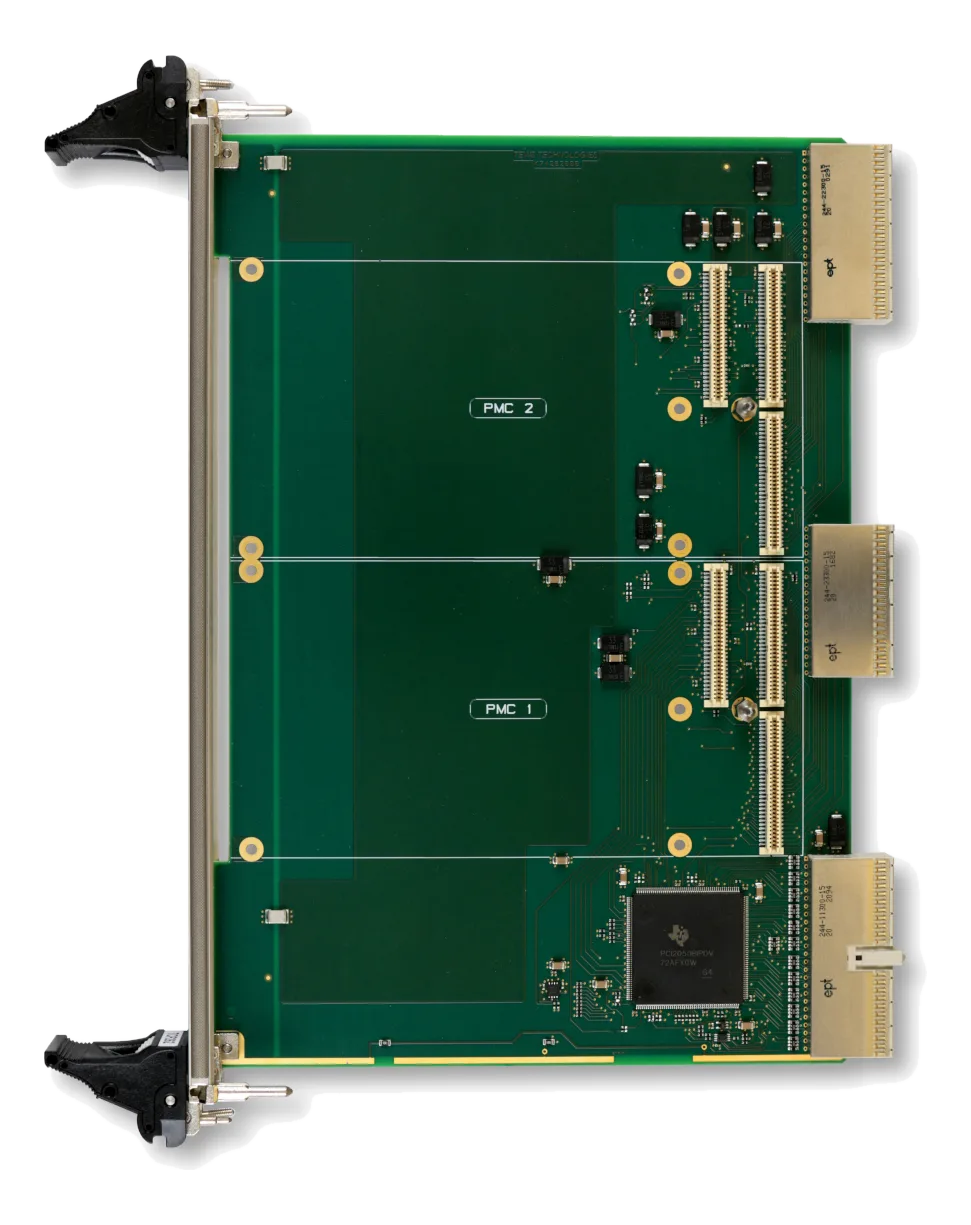

TCP2626U CompactPCI carrier board compliant with PICMG 2.0 R3.0
- Manufacturer
- Configurations
- 1 available configurations
TCP262 hosts PMC modules on the CompactPCI bus: the interface complies with 32-bit PCI 2.2 and the Texas Instruments PCI2050BIPDV PCI-to-PCI bridge connects the system bus to the PMC sites.
The PCI I/O signaling voltage is configurable at +5.0V or +3.3V; the module I/O goes through the front panel via P14/P24 and through the rear via the CompactPCI J3 and J5 connectors. The dimensions of the board are 160 mm x 233.35 mm.
TCP262 is offered in the TCP262-10R version.
At a glance
- Board function: Carrier
- Architecture standard: cPCI 6U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Board function | Carrier |
|---|---|
| Architecture standard | cPCI 6U |
| Bus interface | 3.3V and 5V tolerant+5.0V or +3.3V configurablePCI 2.2 compliant interface, 33 MHz / 66 MHz, 32 bit |
| Dimensions | 160 × 233.35 mm |
|---|---|
| Weight | 0.275 kg |
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| MTBF | 1129000 h |
