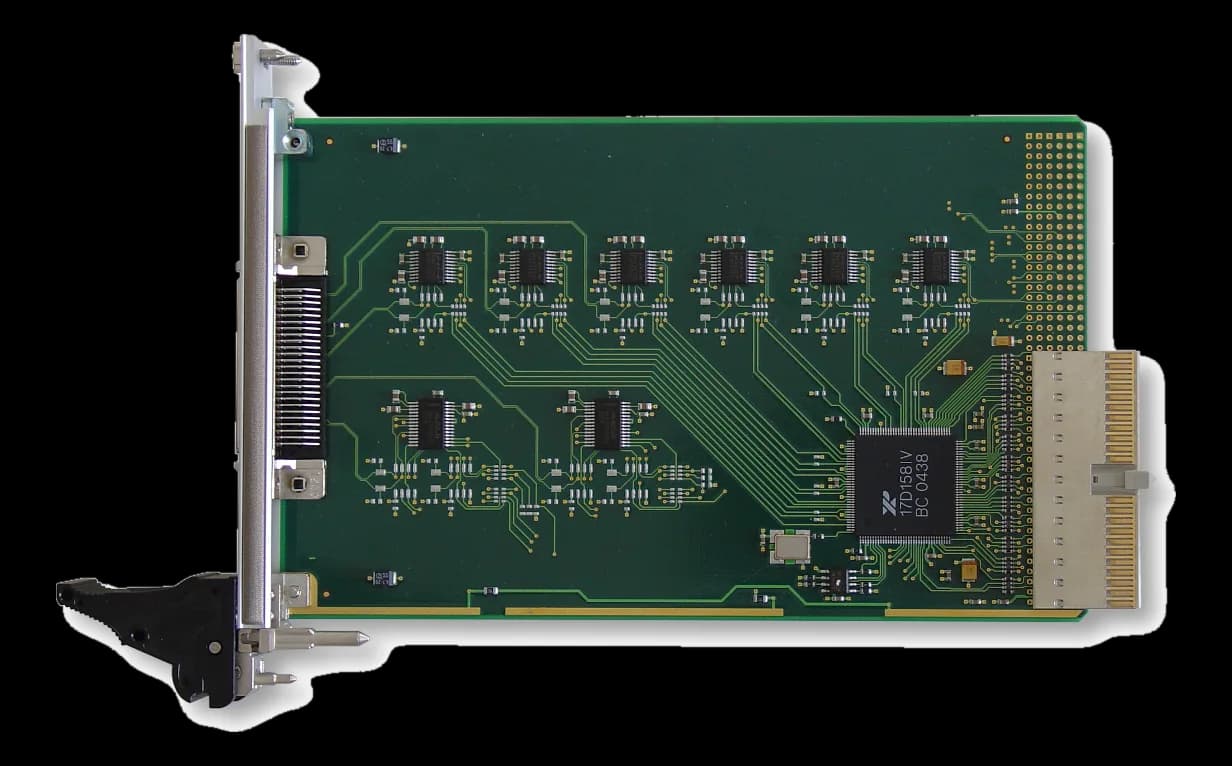

TCP4618-channel 3U CompactPCI serial board
- Manufacturer
- Configurations
- 6 available configurations
TCP461 is a serial communication board for CompactPCI racks, used when the system has to handle many serial lines towards field instruments and units. The board weighs 0.127 kg and is air cooled.
The versions with back I/O also bring the signals to the J2 connector of the rack, a useful answer when cabling on the front panel is not practical.
The configurations of the family differ in consumption, between 0.25 and 0.35 W, and in the declared MTBF, between 480,000 and 650,000 hours. An example in the catalog is TCP461-10R.
At a glance
- Channels: 8 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Power consumption: 0.25 W
- Cooling: Air-cooled (VITA class)
Technical specifications
| Serial interfaces | 8 RS422 (2 with RTS & CTS)(MAX3225E (or equivalent))8 RS232 (2 Full Modem)(MAX3225E (or equivalent)) |
|---|---|
| Connectors | SCSI-2 (HD50)(AMP# 787395-5) |
| Other I/O | HD50 SCSI-2 type female connector (e.g. AMP#787395-5) TCP461-2xR: additional 110 pol. CompactPCI back I/O (J2) |
| Channels | 8 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | XR17D158 (Exar)PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage |
| Power consumption | 0.25 W |
|---|
| Weight | 0.127 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Power consumption(W) | MTBF(h) |
|---|---|---|
| TCP461-10R | 0.25 | 650000 |
| TCP461-11R | 0.35 | 520000 |
| TCP461-12R | 0.3 | 600000 |
| TCP461-20R | 0.25 | 590000 |
| TCP461-21R | 0.35 | 480000 |
| TCP461-22R | 0.3 | 540000 |
