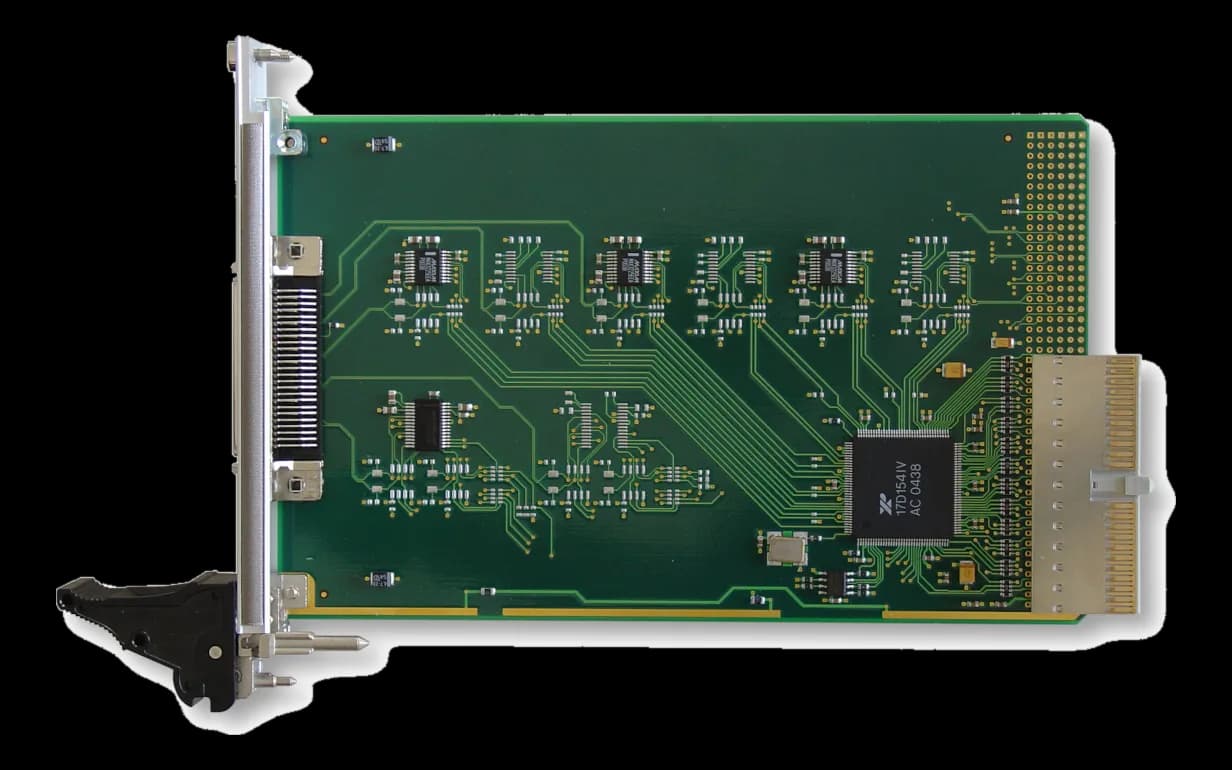

TCP4624-channel 3U CompactPCI serial board
- Manufacturer
- Configurations
- 6 available configurations
TCP462 is a serial communication board for CompactPCI racks, suited to systems that have to reach instruments and units over a limited number of serial lines. The board weighs 0.127 kg and is air cooled.
The versions with back I/O also bring the signals to the J2 connector of the rack, a useful answer when cabling on the front panel is not practical.
The configurations of the family differ in consumption, between 0.15 and 0.2 W, and in the declared MTBF, between 540,000 and 670,000 hours. An example in the catalog is TCP462-10R.
At a glance
- Channels: 4 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Power consumption: 0.15 W
- Cooling: Air-cooled (VITA class)
Technical specifications
| Serial interfaces | 4 RS232 (1 Full Modem)(MAX3225E (or equivalent))TCP462-10R/-20R: 4 RS232 (1 x with Full Modem) TCP462-11R/-21R: 4 RS422 (1 x with RTS & CTS) TCP462-12R/-22R: 2 RS232 (1 x with Full Modem), 2 RS422(MAX3225E (or equivalent)) |
|---|---|
| Connectors | SCSI-2 (HD50)(AMP# 787395-5) |
| Other I/O | HD50 SCSI-2 type female connector (e.g. AMP# 787395-5) TCP462-2xR: additional 110 pol. CompactPCI back I/O (J2) |
| Channels | 4 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | XR17D154 (Exar)PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage |
| Power consumption | 0.15 W |
|---|
| Weight | 0.127 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Serial interfaces | Power consumption(W) | MTBF(h) |
|---|---|---|---|
| TCP462-10R | 4 RS232 (1 Full Modem) | 0.15 | 670000 |
| TCP462-11R | 4 RS422 (1 with RTS & CTS) | 0.2 | 590000 |
| TCP462-12R | 2 RS232 (1 Full Modem), 2 RS422 | 0.18 | 640000 |
| TCP462-20R | 4 RS232 (1 Full Modem) | 0.15 | 600000 |
| TCP462-21R | 4 RS422 (1 with RTS & CTS) | 0.2 | 540000 |
| TCP462-22R | 2 RS232 (1 Full Modem), 2 RS422 | 0.18 | 580000 |
