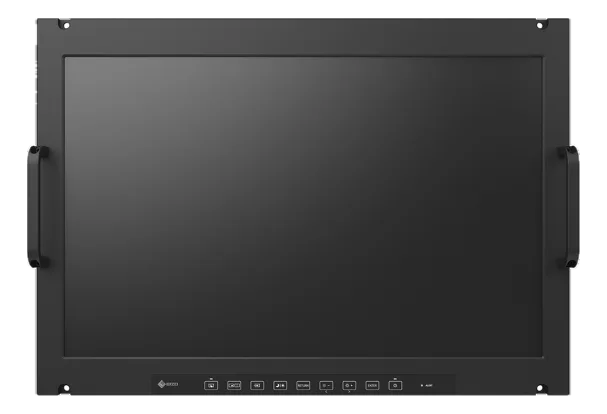

Talon RGD2401W24.1" rugged monitor with capacitive touch and optical bonding
- Manufacturer
Talon RGD2401W is a rugged monitor intended for control and display stations in harsh environments, where equipment has to withstand out-of-the-ordinary climatic and mechanical conditions without giving up a wide viewing area.
On the environmental side, storage tolerance extends from -40 to 71 °C and the stated operating altitude is 3048 m: margins meant for installations exposed to demanding climates and altitudes.
At a glance
- Display size: 24.1 ″
- Resolution: 1920x1200 WUXGA
- Touchscreen: PCAP
- Video inputs: VGA
- Touch points: 5
Technical specifications
| Display size | 24.1 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Aspect ratio | 16:10 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | VGADVISDI |
| Contrast ratio | 1500:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.270 x 0.270 mm |
| Display colors | 16.77M colori (8 bit) |
| Active area | 518.4 × 324.0 mm |
| Response time | 18 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 5 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|
| AC/DC input | ACAC+DC |
|---|---|
| Power input | 18–36 V |
| Power consumption | 63 W |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 580 × 410 × 89.5 mm |
| Weight | 9.3 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 3048 m |
| Certifications | MIL-STD-810MIL-STD-461MIL-STD-704CEFCCUKCA |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
