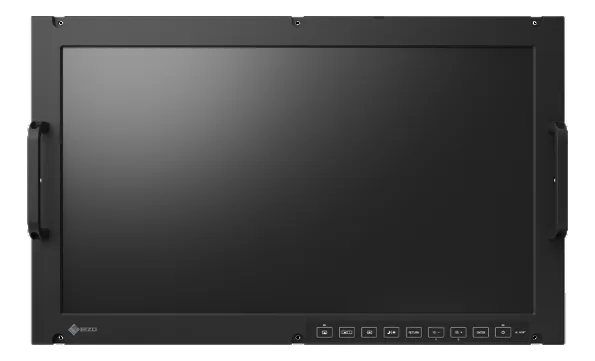

Talon RGD2443W23.7" rugged monitor with 10-point capacitive touch
- Manufacturer
Talon RGD2443W is a monitor in the EIZO Rugged Talon series for defense and naval applications, where the video picture has to stay legible and intact under shock, vibration and the wide climatic swings typical of on-board and field installations.
Storage tolerance extends from -40 to 71 °C and the declared operating altitude is 5029.2 m; the glass surface combines anti-glare and anti-fingerprint treatment.
At a glance
- Display size: 23.7 ″
- Resolution: 3840x2160 4K
- Touchscreen: PCAP
- Video inputs: HDMI
- Touch points: 10
Technical specifications
| Display size | 23.7 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | HDMIDisplayPort |
| Contrast ratio | 1200:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.137 x 0.137 mm |
| Display colors | 1.07 miliardi di colori (10 bit) |
| Active area | 525.66 × 295.7 mm525.7 × 295.7 mm |
| Response time | 14 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 10 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|
| AC/DC input | ACAC+DC |
|---|---|
| Power input | 18–36 V |
| Power consumption | 73 W |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 598 × 369 × 70 mm |
| Weight | 9.3 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | MIL-STD-810MIL-STD-461MIL-STD-704CEFCCUKCA |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
