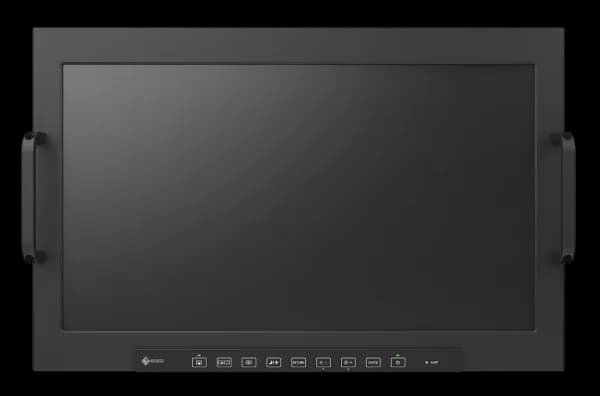

Talon RGD2102W21.5" rugged monitor with Composite BNC video input and IP65 front
- Manufacturer
Talon RGD2102W is a monitor in the EIZO Rugged Talon line intended for bridges, consoles and video stations in naval and defense settings: it brings on-board video signals onto a display qualified for vibration, shock and wide climatic swings.
It is characterized by a storage tolerance from -40 to 71 °C and an operating altitude of 5029.2 m; the glass surface receives an anti-glare and anti-fingerprint treatment.
At a glance
- Display size: 21.5 ″
- Resolution: 1920x1080 FHD
- Touchscreen: PCAP
- Video inputs: Composite BNC
- Touch points: 5
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | Composite BNC |
| Contrast ratio | 5000:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.248 x 0.248 mm0.2458–0.248 mm |
| Display colors | 16.77M colori (8 bit) |
| Active area | 476.6 × 268.1 mm |
| Response time | 25 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 5 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|
| AC/DC input | ACAC+DC |
|---|---|
| Power input | 18–36 V |
| Power consumption | 61 W |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 538.5 × 348 × 80 mm |
| Weight | 10 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | MIL-STD-810MIL-STD-461MIL-STD-704CEFCCUKCA |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
