Talon RGD2101WRugged monitor with optical bonding and anti-glare treatment for harsh environments
- Manufacturer

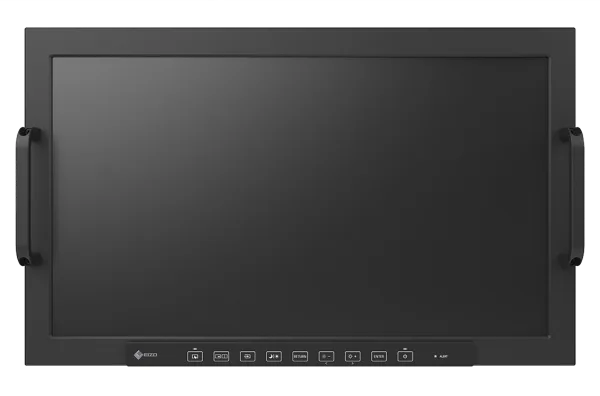

The Talon RGD2101W is a rugged monitor in the EIZO Rugged Talon line, designed for defense applications and exposed operating stations, where the display has to stay protected and legible while in service.
It operates at an altitude of 3,048 m and tolerates storage temperatures from -40 to 71 °C; the 3H hardness surface protects the glass in demanding installations.
At a glance
- Display size: 21.5 ″
- Resolution: 1920x1080 FHD
- Touchscreen: Resistive
- Video inputs: Composite BNC
- Touch points: 1
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | Resistive |
| Video inputs | Composite BNC |
| Contrast ratio | 5000:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.248 x 0.248 mm |
| Display colors | 16.77M colori (8 bit) |
| Active area | 476.6 × 268.1 mm |
| Response time | 25 ms(typ) |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG) |
| Touch points | 1 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|---|
| Other I/O | USB, RS-232C |
| AC/DC input | DC |
|---|---|
| Power input | 18–36 V |
| Power consumption | 44 W |
| Mounting | Rack MountVESA Mount |
|---|---|
| Dimensions | 528.1 × 323.8 × 78.5 mm |
| Weight | 8.4 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 3048 m |
| Certifications | UKCACEFCCMIL-STD-810MIL-STD-461MIL-STD-704 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
