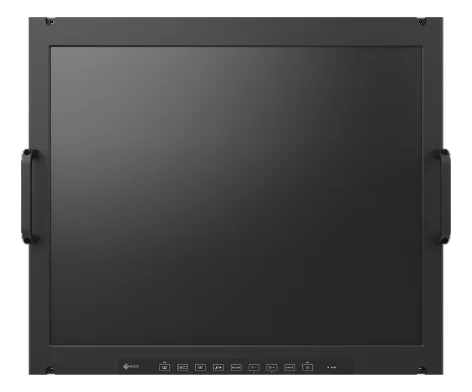

Talon RGD2100Rugged monitor with 10-point capacitive touch and optical bonding
- Manufacturer
Talon RGD2100 is a monitor in the EIZO Rugged Talon series intended for consoles and control rooms in defense and naval settings, where the display has to tolerate vibration, shock and wide climatic swings without losing the legibility of the operational picture.
It is set apart by its environmental tolerance — storage from -40 to 71 °C and an operating altitude of 5029.2 m — and by the glass surface with anti-glare and anti-fingerprint treatment.
At a glance
- Display size: 21.3 ″
- Resolution: 1600x1200
- Touchscreen: PCAP
- Video inputs: VGA
- Touch points: 10
Technical specifications
| Display size | 21.3 ″ |
|---|---|
| Resolution | 1600x1200 |
| Aspect ratio | 4:3 |
| Brightness | 400-599 high cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | VGADVIDisplayPort |
| Contrast ratio | 1800:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.270 x 0.270 mm |
| Display colors | 16.77M colori (8 bit) |
| Active area | 432.0 × 324.0 mm |
| Response time | 6 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 10 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 18–36 V |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 482 × 399 × 75.5 mm |
| Weight | 9.8 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | CEMIL-STD-704UKCAMIL-STD-810MIL-STD-461FCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
