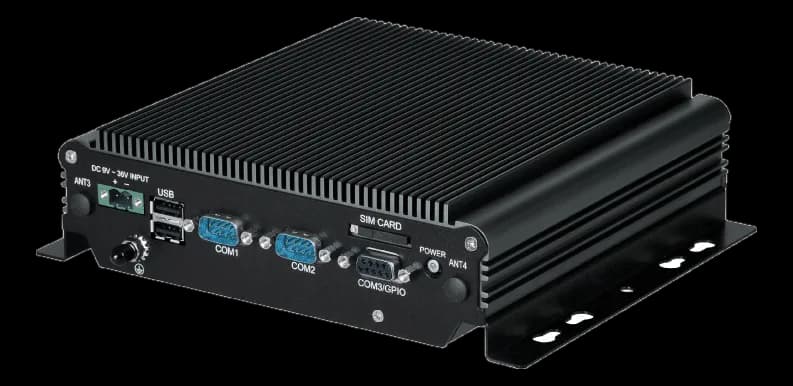

SBOX-2321 Fanless Embedded Computer with Intel Atom x6416RE

Embedded Computers

SBOX-2321Fanless Sintrones embedded computer for wall mounting, EN 50155 certified

Manufacturer

SBOX-2321 is a fanless Sintrones embedded computer for electrical panels, technical enclosures and unattended stations: a 1.48 kg wall mount aluminum chassis and EN 50155, MIL-STD-810 and E-Mark certifications.

The platform is a quad-core Intel Atom x6416RE with DDR4 memory from 8 to 32 GB and an Infineon TPM 2.0; on board are two 2.5GbE ports with TSN support, RS-232/422/485 serial ports, DIO on DB9, DisplayPort and DVI-D outputs, M.2 NVMe and 2.5" SATA storage, plus a DC power input with OVP and OCP protection. Linux and Windows IoT are supported.

At a glance

  • CPU generation: Elkhart Lake
  • Processor: Intel Atom® x6416RE Quad-core Processor 1.7 GHz
  • RAM type: DDR4
  • Maximum RAM: 32 GB
  • USB ports: 2× USB 2.0

Technical specifications

CPU generationElkhart Lake
ProcessorIntel Atom® x6416RE Quad-core Processor 1.7 GHz
GraphicsIntegrated Intel® UHD up to 16 EUs

Memory8–32 GB (-40~85 °C)(DDR4)
RAM typeDDR4
Maximum RAM32 GB

Storage1× M.2 2280 Key M (SSD NVMe/SATA)(M.2-M)1× SATA 6Gb/s (storage 2.5″)(2.5-SATA)

Video outputs1× DVI-D (single-link cable only)1× DP 1.4(DisplayPort)

Ethernet ports2× 2.5GbE (Intel), TSN hardware2× 2.5GbE RJ45
USB ports2× USB 2.02× USB 3.2 (10 Gbps)
Serial interfaces2× RS-232/422/485 (3rd optional)
Audio2× TRS jack 3.5 mm (stereo mic-in and line-out)
Digital I/O1× DB-9: 4× DI + 4× DO (12VDC, 100mA)(GPIO · in)1× DB-9: 4× DI + 4× DO (12VDC, 100mA)(GPIO · out)
CAN busCAN bus (mPCIe module)(miniPCIe-module · optional)

Expansion1× M.2 2230 Key E + 1× M.2 3042/52 Key B + 1× mPCIe1× mPCIe(Mini-PCIe)

AC/DC inputDC
Supply voltage9–36 V DC

MountingWall Mount
Dimensions171 × 54 × 182 mm
Weight1.48 kg
Chassis materialAluminum

CoolingFanless
Operating temperature-40–70 °C
Storage temperature-40–85 °C

Certified market sectorsRailwayAutomotive
CertificationsCEE-MarkEN 50155FCCMIL-STD-810

Operating systemsLinuxWindows 10 IoTWindows 11 IoT

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
