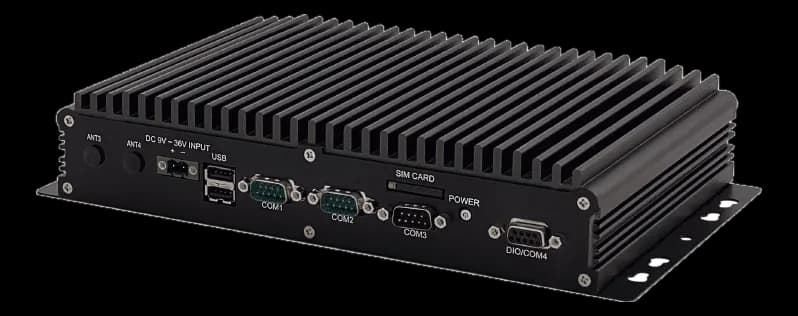

SBOX-2621Sintrones embedded computer with 6th generation Intel and a 4G/LTE modem
- Manufacturer
SBOX-2621 is a fanless Sintrones embedded computer for remote control, telemetry and plant gateways: an aluminum chassis, mounting on DIN rail, VESA bracket or wall and EN 50155, MIL-STD-810 and E-Mark certifications.
The platform is 6th generation Intel up to the Core i7-6600U, with DDR4 memory from 4 to 16 GB and TPM 2.0; on board are two GbE ports (iAMT on i5/i7), RS-232/422/485 serial ports, GPIO with 4 in/4 out, two HDMI and one VGA, 4G/LTE and GPS/GNSS modules, plus a DC power input with OVP, OCP and reverse polarity protection. Linux and Windows are supported.
At a glance
- CPU generation: 6th gen (Skylake)
- Processor: Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
- Memory: 1× SO-DIMM DDR4, max 16 GB
- RAM type: DDR4
- Maximum RAM: 16 GB
Technical specifications
| CPU generation | 6th gen (Skylake) |
|---|---|
| Processor | Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz |
| Graphics | Intel HD Graphics |
| Memory | 1× SO-DIMM DDR4, max 16 GB4–16 GB(DDR4) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 16 GB |
| Storage | 1× SATA DOM1× bay 2.5″ SATA (HDD/SSD) |
|---|
| Video outputs | 1× VGA2× HDMI |
|---|
| Ethernet ports | 1× GbE (Intel i219-LM, LAN 2), iAMT con i5/i72× GbE RJ45 |
|---|---|
| USB ports | 2× USB 3.02× USB 2.0 |
| Serial interfaces | 3× RS-232/422/485 (per i5/i7) |
| Audio | Line-Out |
| Digital I/O | 4× GPI + 4× GPO (livello 5V)(GPIO · out)4× GPI + 4× GPO (livello 5V)(GPIO · in) |
| Wireless | 4G/LTEGPS/GNSS |
|---|
| Expansion | 2× Mini-card (1 con SIM, solo LTE) + 1× M.2 Key A-E |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountWall MountDIN Rail Mount |
|---|---|
| Weight | 1200g (Barebone) kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–85 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | EN 50155E-MarkMIL-STD-810FCCCE |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
