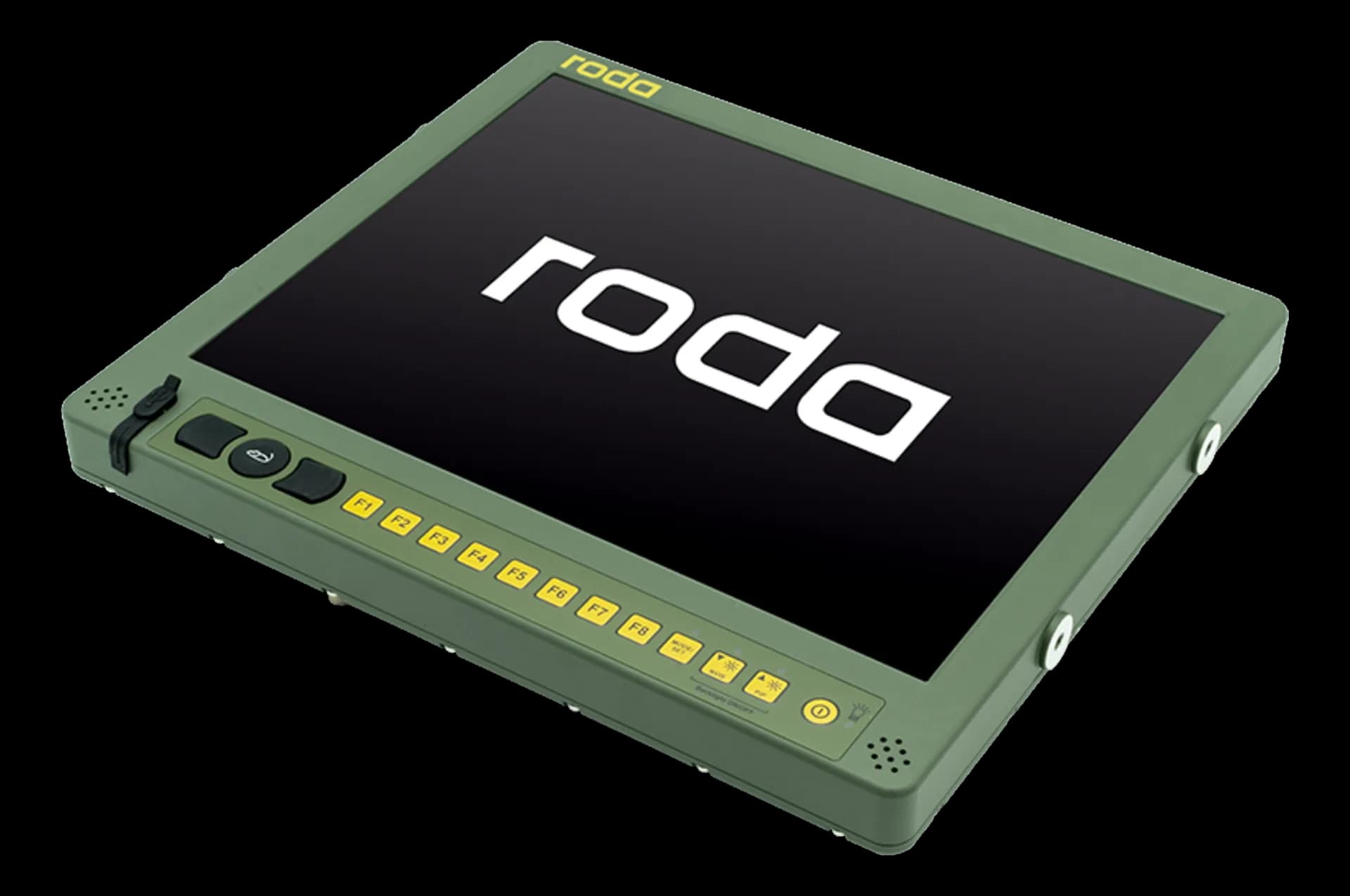

RD15-UXGA-03Rugged monitor with MIL DC-In connector and integrated camouflage function
- Manufacturer
RD15-UXGA-03 is a RODA rugged display designed for integration on vehicles and in field stations, where every part of the equipment is chosen to withstand transport, shock and prolonged use in the field.
The panel responds in 25 ms and offers ±160° viewing angles both horizontally and vertically; a weight held to 3.3 kg eases mounting on brackets and on-board supports. Surge and transient protection completes its integration with the vehicle power supply.
At a glance
- Display size: 15
- Resolution: 1600x1200
- Touchscreen: Resistive
- Video inputs: DVI
- Contrast ratio: 700:1
Technical specifications
| Display size | 15 |
|---|---|
| Resolution | 1600x1200 |
| Aspect ratio | 4:3 |
| Brightness | 600-999 outdoor cd/m²(typ) |
| Touchscreen | Resistive |
| Video inputs | DVIVGA |
| Contrast ratio | 700:1 |
| Viewing angle | ±160° (H) / ±160° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 25 ms (T ON +T OFF ) |
| OSD controls | 8× programmable function keys |
| USB ports | 1× USB 2.0 (front side)3× USB 2.0 (rear side) |
|---|---|
| Other I/O | 1× MIL DC-In (with integrated camouflage function) |
| AC/DC input | DC |
|---|---|
| Power input | 19 VDC V |
| PSU power | 30 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 351 × 300 × 57 mm |
| Weight | 3.3 kg |
| IP rating | IP65 |
|---|---|
| Operating temperature | -31–63 °C |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
