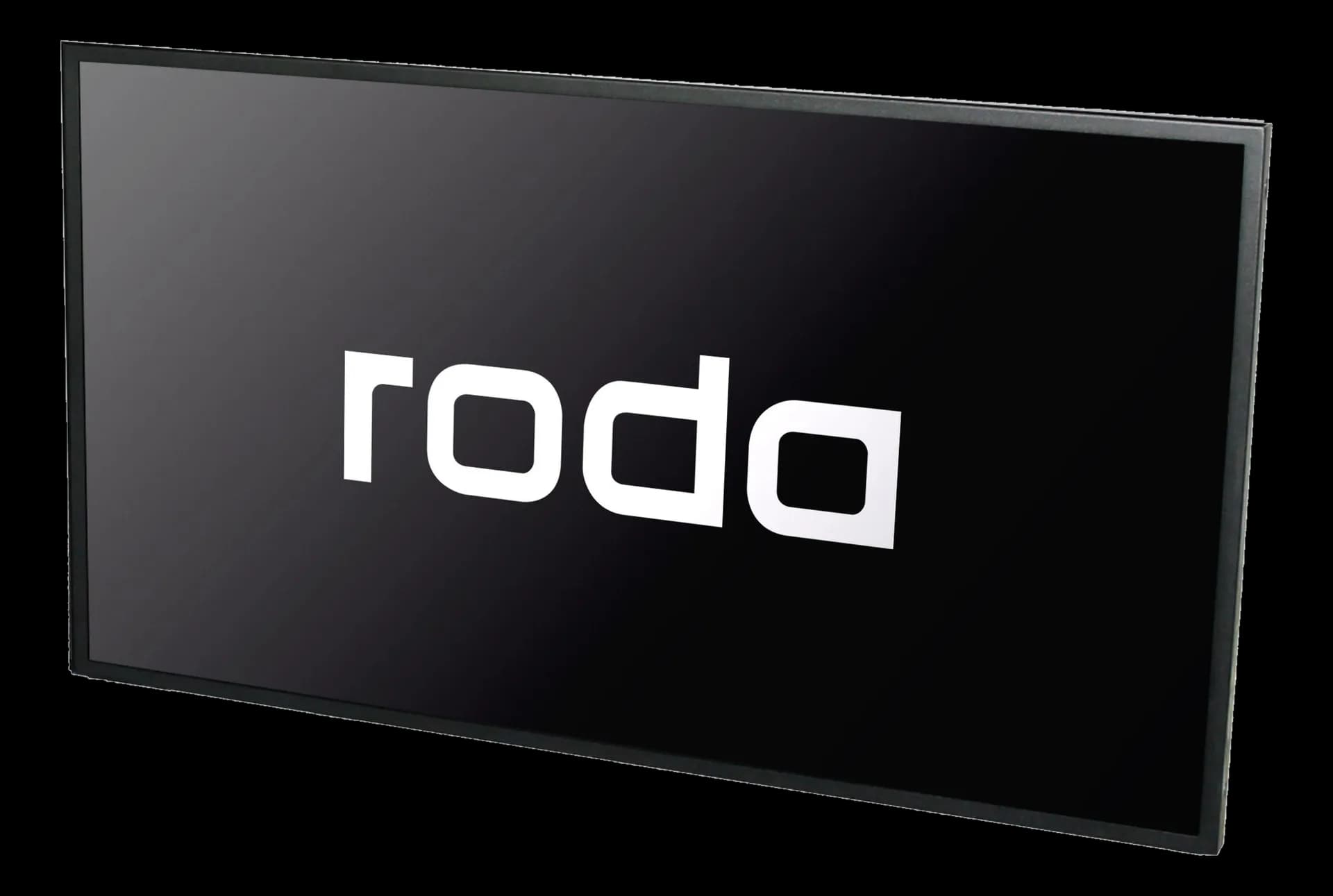

HEL6565" rugged monitor with aluminum frame and IP54 rating
- Manufacturer
HEL65 is a large-format RODA rugged display, developed for command rooms, bridges and supervision stations that need wide video surfaces inside an enclosure suited to harsh environments.
Mounting is on a VESA interface, so the monitor fits standard brackets and supports. The panel responds in 8 ms and holds 178° viewing angles both horizontally and vertically, for correct reading from lateral positions as well.
At a glance
- Display size: 65
- Resolution: 3840x2160 4K
- Brightness: 400-599 high cd/m²
- Contrast ratio: 4000:1
- AC/DC input: AC
Technical specifications
| Display size | 65 |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | 400-599 high cd/m² |
| Contrast ratio | 4000:1 |
| Viewing angle | 178° (H) / 178° (V) |
| Response time | 8 ms (GtoG) |
| AC/DC input | AC |
|---|---|
| Power input | 230 VAC V |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 1453 × 834 × 93.4 mm |
| Weight | 56 kg |
| Chassis material | alluminio |
| IP rating | IP54 |
|---|
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
