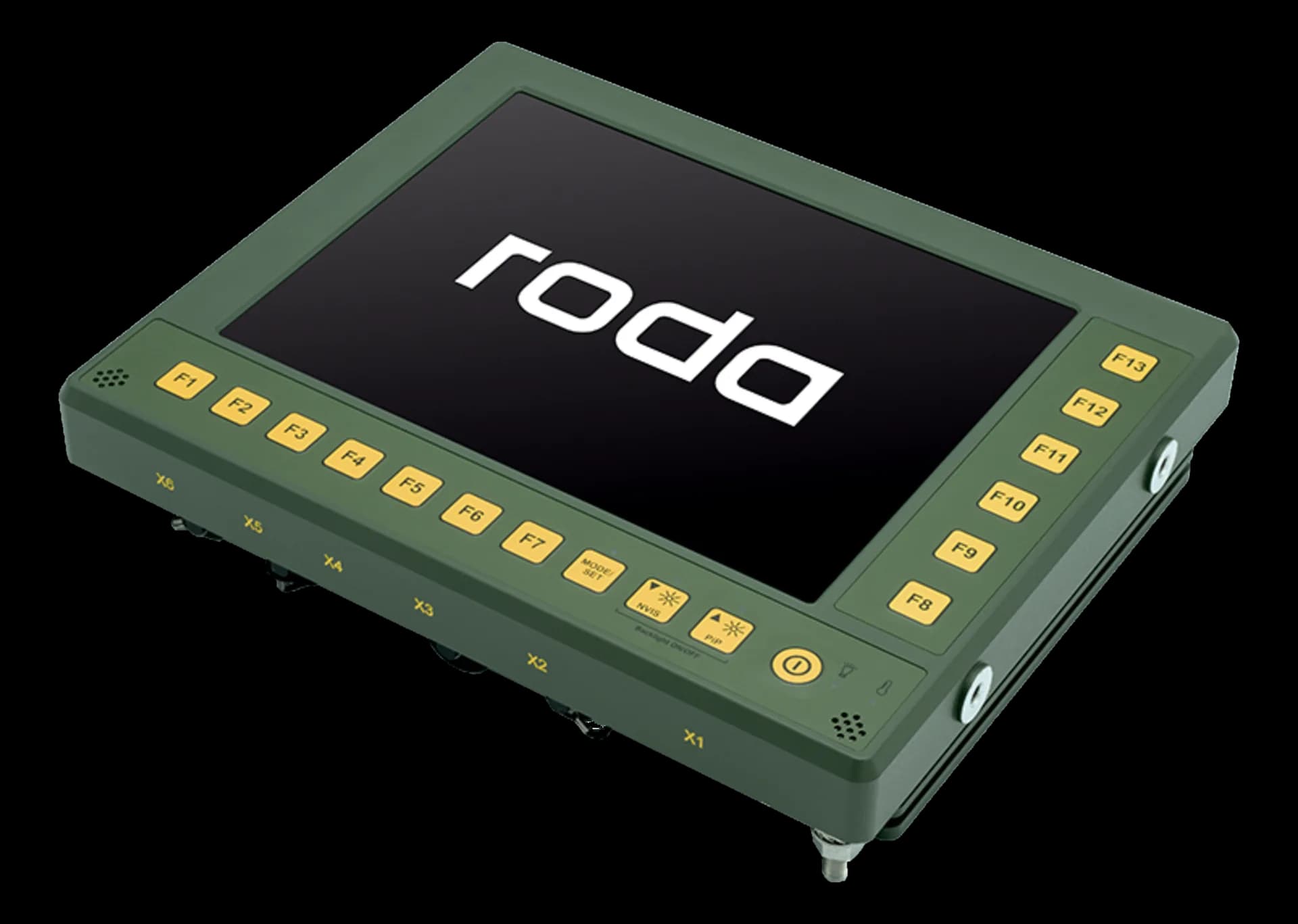

RD10-XGA-03Rugged monitor with resistive touchscreen compliant with MIL-STD-810
- Manufacturer
RD10-XGA-03 is a RODA rugged display for demanding use on vehicles, in shelters and in field installations, contexts where the monitor is often the only point of interaction with the system and has to stay legible and intact over time.
The OSD provides 13 programmable function keys, available as a factory option, and viewing angles reach ±160° both horizontally and vertically, for control from positions off to the side of the screen as well.
At a glance
- Display size: 10.4
- Resolution: 1024x768 XGA
- Touchscreen: Resistive
- Video inputs: DVI
- Contrast ratio: 900:1
Technical specifications
| Display size | 10.4 |
|---|---|
| Resolution | 1024x768 XGA |
| Aspect ratio | 4:3 |
| Brightness | 600-999 outdoor cd/m²(typ) |
| Touchscreen | Resistive |
| Video inputs | DVI |
| Contrast ratio | 900:1 |
| Viewing angle | ±160° (H) / ±160° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 18 ms (T ON +T OFF ) |
| OSD controls | 13× programmable function keys (factory option) |
| USB ports | 2× MIL USB 2.0 |
|---|---|
| Other I/O | 1× MIL DC-In (with integrated camouflage function) |
| AC/DC input | DC |
|---|---|
| Power input | 18–32 V |
| PSU power | 30 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 293 × 235 × 62 mm |
| Weight | 3 kg |
| IP rating | IP65 |
|---|---|
| Operating temperature | -32–60 °C |
| Certifications | MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
