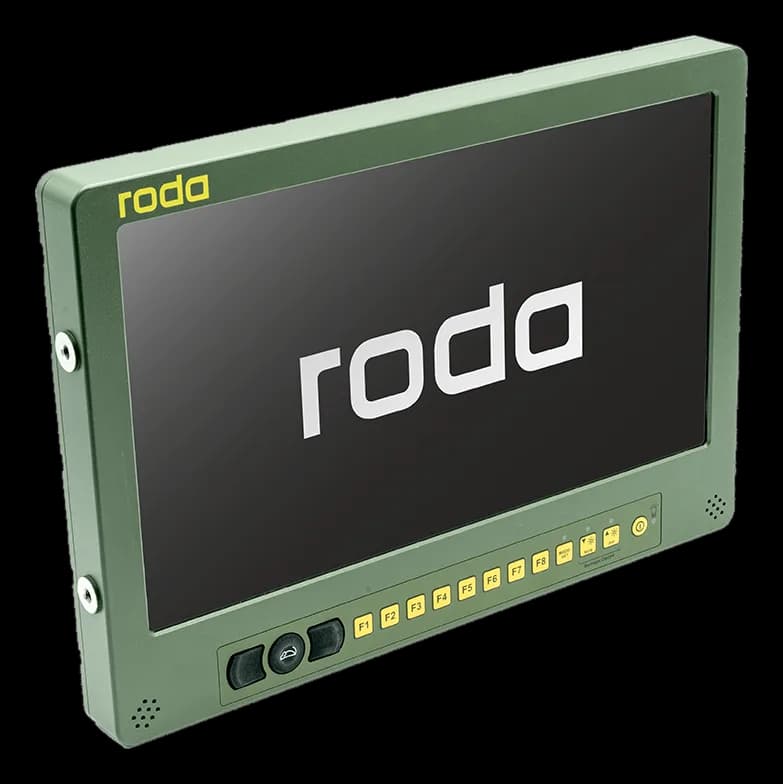

RD15-FHD-02Rugged monitor with resistive touchscreen and integrated electrical protection
- Manufacturer
RD15-FHD-02 is a RODA rugged display intended for vehicles, shelters and field stations, applications in which the monitor accompanies the equipment through its whole service cycle and cannot be replaced by a commercial product.
At a weight of 4.8 kg the monitor stays manageable in arm or panel installations, and ±160° viewing angles on both axes allow reading from off-axis positions as well.
At a glance
- Display size: 15.6
- Resolution: 1920x1080 FHD
- Touchscreen: Resistive
- Video inputs: DVI
- Contrast ratio: 750:1
Technical specifications
| Display size | 15.6 |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | 600-999 outdoor cd/m²(typ) |
| Touchscreen | Resistive |
| Video inputs | DVIVGA |
| Contrast ratio | 750:1 |
| Viewing angle | ±160° (H) / ±160° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 30 ms (T ON +T OFF ) |
| OSD controls | 8× programmable function keys |
| USB ports | 2× USB 2.01× USB 2.0 (front side) |
|---|---|
| Other I/O | 1× MIL DC-In (with integrated camouflage function) |
| AC/DC input | DC |
|---|---|
| Power input | 12–32 V |
| PSU power | 45 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 393 × 270 × 66 mm |
| Weight | 4.8 kg |
| IP rating | IP65 |
|---|---|
| Operating temperature | -31–60 °C |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
