RD22-FHD-0221.5-inch rugged monitor with a 5000:1 contrast ratio
- Manufacturer

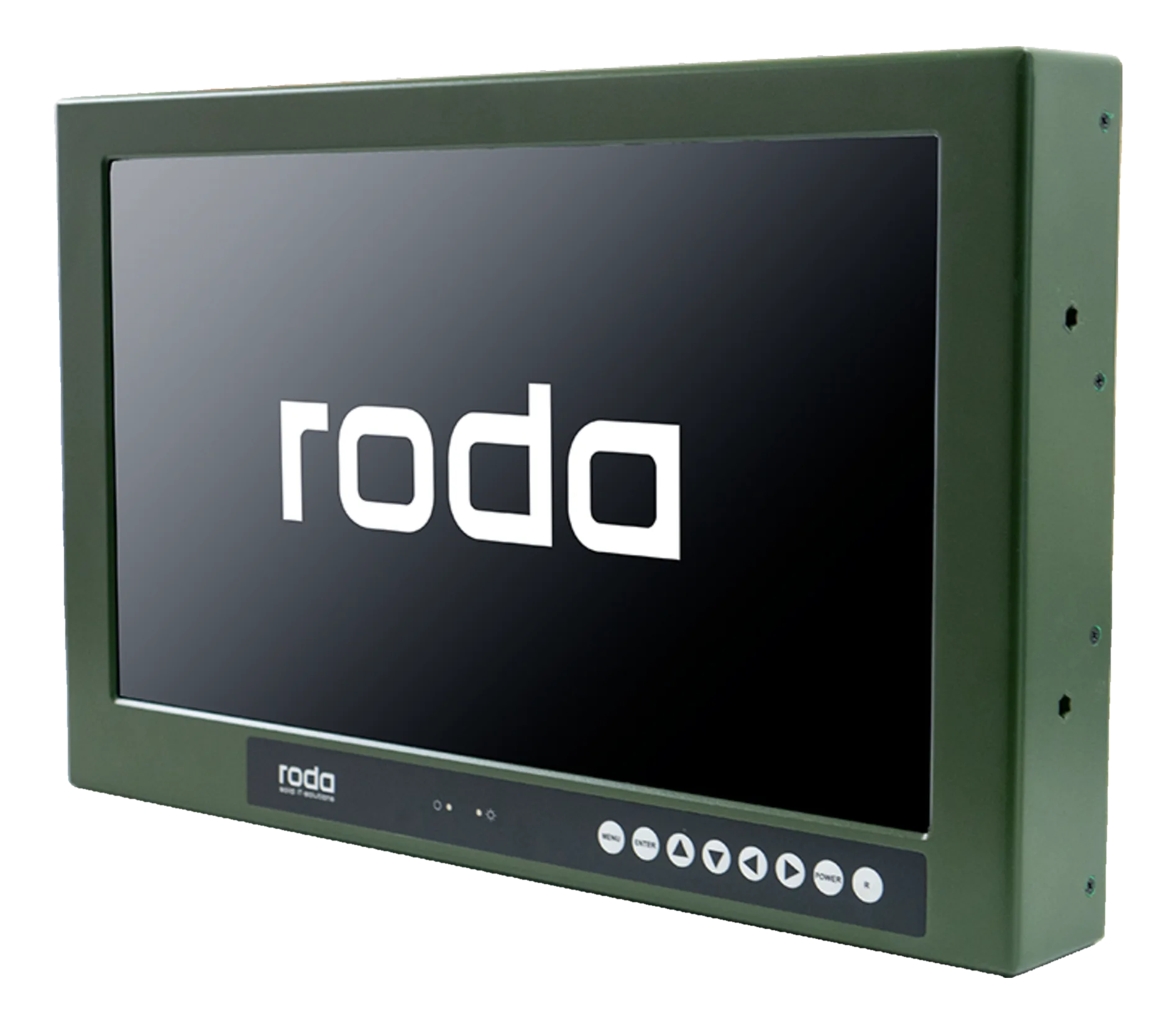

RD22-FHD-02 is a rugged monitor for military and vehicle stations, equipped with camouflage mode and a circuit breaker; the weight is about 13 kg.
The panel delivers a typical brightness of 600 cd/m² with a ±178° viewing angle on both axes.
At a glance
- Display size: 21.5
- Resolution: 1920x1080 FHD
- Video inputs: DVI
- Contrast ratio: 5000:1
- USB ports: 2× USB 2.0
Technical specifications
| Display size | 21.5 |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | 600-999 outdoor cd/m²(typ) |
| Touchscreen | Resistive(optional) |
| Video inputs | DVIVGA |
| Contrast ratio | 5000:1 |
| Viewing angle | ±178° (H) / ±178° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 16 ms (T ON +T OFF ) |
| OSD controls | 8 keys OSD menu |
| USB ports | 2× USB 2.0 |
|---|---|
| Other I/O | 1× MIL camouflage function |
| AC/DC input | AC+DCDC |
|---|---|
| Power input | 18–32 V |
| PSU power | 120 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 557 × 353 × 71.5 mm |
| Weight | 13 kg |
| IP rating | IP64 |
|---|---|
| Operating temperature | -20–60 °C |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
