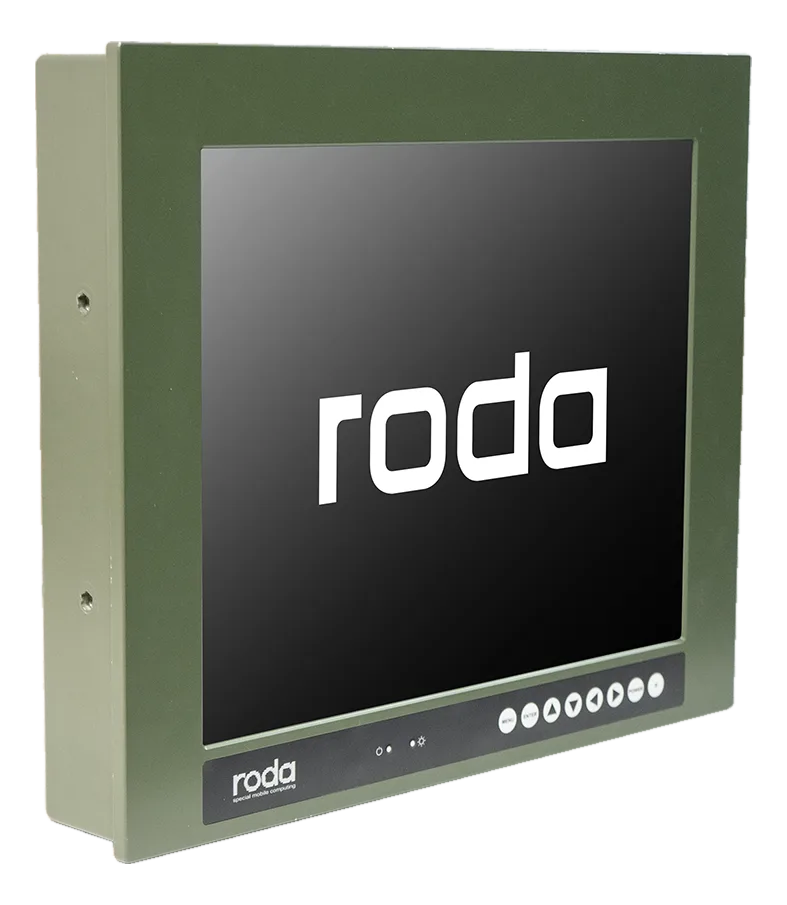

RD19-SXGASXGA rugged monitor for military and vehicle stations
- Manufacturer
RD19-SXGA is a rugged monitor for command stations, vehicles and exposed installations, with field functions such as camouflage mode and an integrated circuit breaker. The complete frame weighs about 10.7 kg.
Power works on a 24 V DC nominal input with an 85 W power supply included, while the panel reaches a contrast ratio of 1000:1.
At a glance
- Display size: 19
- Resolution: 1280x1024 SXGA
- Video inputs: VGA
- Contrast ratio: 1000:1
- USB ports: 2× USB 2.0
Technical specifications
| Display size | 19 |
|---|---|
| Resolution | 1280x1024 SXGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | Resistive(optional) |
| Video inputs | VGADVI |
| Contrast ratio | 1000:1 |
| Viewing angle | ±170° (H) / ±160° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 10 ms (TON+TOFF) |
| OSD controls | 8 keys OSD menu |
| USB ports | 2× USB 2.0 |
|---|---|
| Other I/O | 1× MIL DC-In · 1× MIL camouflage function |
| AC/DC input | AC+DCDC |
|---|---|
| Power input | 18–32 V |
| PSU power | 85 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 480 × 405 × 77.5 mm |
| Weight | 10.7 kg |
| IP rating | IP65 |
|---|
| Certifications | MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
