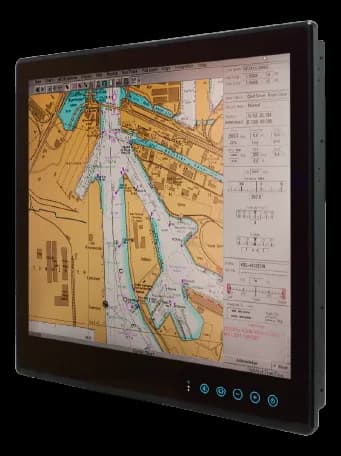

R19L300-MRA1FP19" monitor with IP66 front and aluminium frame
- Manufacturer
R19L300-MRA1FP is a Winmate industrial monitor for control rooms and onboard monitoring stations, where the panel stays under direct lighting for prolonged shifts.
The trait that distinguishes it is the Anti-reflective (AR) surface treatment, which attenuates the reflections of lights on the reading area. The permitted humidity runs from 5 to 95 %, the declared module consumption is 45 W and the weight is 9.8 kg.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: 400-599 high cd/m²
- Video inputs: DVI
- Contrast ratio: 1000:1
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | PCAP(default) |
| Video inputs | DVIVGAHDMI(1.4) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Display colors | 16.7M Colors |
| Active area | 376.32 × 301.06 mm |
| Surface treatment | Anti-reflective (AR)Anti-glare (AG)(AG film (Optional) · optional) |
| OSD controls | Capacitive touch keys: ECDIS, Home, Brightness(+,-), Power |
| USB ports | 1× USB Type A |
|---|---|
| Serial interfaces | 1× RS232 for remote control |
| Audio | 75 dB~80 dB, 2300 Hz, 1m(buzzer) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 45 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 429 × 382 × 72.8 mm |
| Cutout dimensions | 408 × 359 mm |
| Weight | 9.8 kg |
| Chassis material | alluminio |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certified market sectors | Marine |
|---|---|
| Certifications | DNV / IEC 60945FCCCE |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
