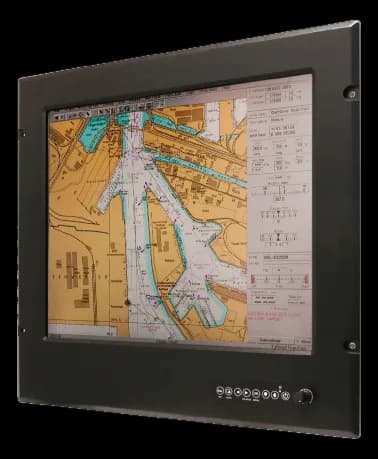

R19L300-MRA119" monitor with DNV / IEC 60945 type approval and IP66 front
- Manufacturer
R19L300-MRA1 is a Winmate industrial monitor for the bridge, the control room and onboard monitoring stations, where the display works in continuous service and is recessed into the console.
The permitted humidity runs from 5 to 95 % and power input accepts a 9~36 V direct current input, which absorbs the fluctuations of the onboard line; cooling is passive and the aluminium metal structure brings the weight to 9.2 kg.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: 400-599 high cd/m²
- Video inputs: S-Video
- Contrast ratio: 1000:1
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | S-VideoComposite BNCVGADVI |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Display colors | 16.7M Colors |
| Active area | 376.32 × 301.06 mm |
| Surface treatment | Anti-reflective (AR)(optional) |
| Serial interfaces | 1× RS232/USB for Touch Screen1× RS232 for Remote Control |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 45 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 483 × 444 × 75 mm |
| Cutout dimensions | 431 × 393 mm |
| Weight | 9.2 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certified market sectors | Marine |
|---|---|
| Certifications | DNV / IEC 60945FCCCE |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
