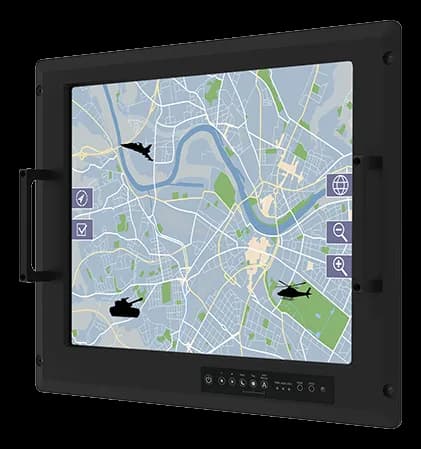

R19IB3S-RKA3ML19" fanless rugged panel PC with a light sensor for brightness
- Manufacturer
R19IB3S-RKA3ML is a Winmate rugged panel PC for automation and plant HMI stations: a fixed terminal with an aluminum and metal frame, designed to work continuously beside the line.
The axes that set it apart are the operating range from 0 to 50 °C, with storage from -10 to 60 °C and humidity from 10 to 95 %, and the choice of operating system between Linux and Windows 10 IoT. Testing to MIL-STD-461 and MIL-STD-810 attests to its electromagnetic compatibility and environmental resistance.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB (Default) GB(DDR3L · 1600 MHz)8GB GB(DDR3L · optional · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)256GB(optional · mSATA)512GB(optional · mSATA) |
|---|
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 376.32 × 301.06 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 1× USB2.01× USB3.0 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| Sensors | Built-in Light Sensor for auto brightness control |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Dimensions | 482.6 × 399.3 × 81.4 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | CEMIL-STD-810FCCMIL-STD-461 |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
