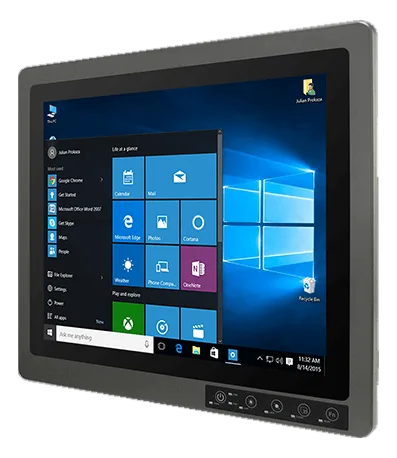

R19IB3S-67FTP(HB)19" rugged panel PC with capacitive touch for industrial environments
- Manufacturer
R19IB3S-67FTP(HB) is a Winmate rugged panel PC for machine-side operator stations and for plants where the terminal stays exposed to water, dust and washdowns. Panel mounting integrates it directly into the cabinet or the workstation; the frame is aluminum.
What sets it apart are the DC power with a 9~36 V input, suited to cabinets and vehicles with variable on-board voltages, and the storage tolerance from -30 to 70 °C. A contrast ratio of 1000 and CE and FCC certifications complete the profile.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- Memory: 4GB(Default) GB
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB(Default) GB8GB GB(optional) |
|---|
| Storage | 512GB SSD(optional · SSD/HDD)256GB SSD(optional · SSD/HDD)128GB SSD(Default)(SSD/HDD) |
|---|
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | PCAP |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 376.32 × 301.06 mm |
| OSD controls | Button 1 x Power Button 1 x Brightness up Button 1 x Brightness down Button 1 x Button for locking touch function 1 x Programmable function key |
| Optical bonding | Yes |
| Ethernet ports | 1× waterproof Giga LAN RJ45 connector |
|---|---|
| USB ports | 2× USB2.01× Waterproof USB Type-A Connector with cover1× connettore M12 stagno per 2× USB 2.0 |
| Serial interfaces | 1× M12 waterproof connector for RS232 |
| Other I/O | 1× Power Button · 1× Brightness up Button · 1× Brightness down Button · 1× Button for locking touch function · 1× Programmable function key |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Panel MountVESA Mount(optional) |
|---|---|
| Dimensions | 474 × 410 × 111 mm |
| Cutout dimensions | 462 × 386 mm |
| Weight | 9.8 kg |
| Chassis material | alluminio |
| IP rating | Full IP67 |
|---|---|
| Operating temperature | -10–55 °C-40–55 °C(optional) |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
