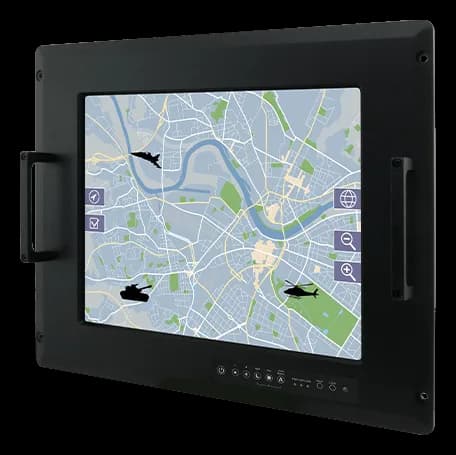

R17IB3S-RKA1ML17" fanless rugged panel PC with an AC+DC input
- Manufacturer
R17IB3S-RKA1ML is a Winmate rugged panel PC for operator stations in industrial environments, where display and computing unit share the same chassis on the cabinet front.
The operating system is offered with Linux or Windows 10 IoT; the operating temperature runs from 0 to 50 °C, with storage from -10 to 60 °C. The declared contrast ratio is 1000, tolerated relative humidity reaches 95% and MIL-STD-461 compliance completes the profile.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 8GB GB(DDR3L · optional · 1600 MHz)4GB (Default) GB(DDR3L · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)512GB(optional · mSATA)256GB(optional · mSATA) |
|---|
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 1× USB3.01× USB2.0 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10% (Default); DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Dimensions | 482 × 354 × 80 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | MIL-STD-461CEMIL-STD-810FCC |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Documentation

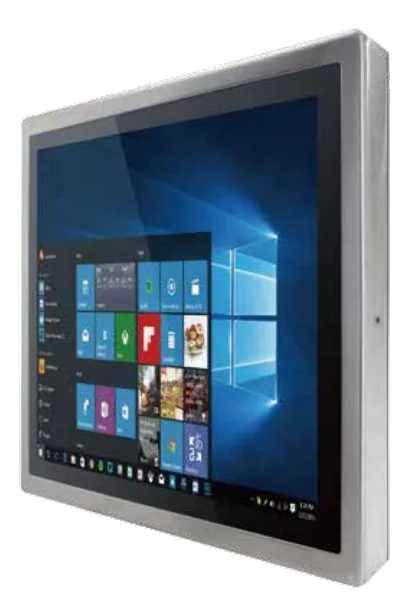

In the same family
