R17IB3S-SPA1
- Manufacturer

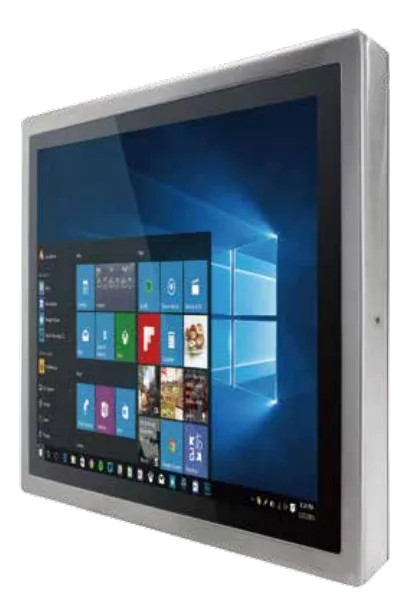

R17IB3S-SPA1 is a Winmate product in the Industrial Panel PCs category.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel® Celeron Bay Trail-M N2930 1.83GHz
- CPU frequency: 1.83 GHz
- Memory: 1 x SO-DIMM, Default 4GB, Max 8GB DDR3L 1600
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel® Celeron Bay Trail-M N2930 1.83GHz |
| Chipset | SoC |
| Graphics | Integrated HD Graphics |
| BIOS | AMI 16Mbit Flash |
| CPU frequency | 1.83 GHz |
| Memory | 1 x SO-DIMM, Default 4GB, Max 8GB DDR3L 1600 |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Display size | 17 |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000(typ) |
| Viewing angle | -85~85(H);-80~80(V) |
| Display colors | 16.7M |
| Ethernet ports | 2 x RJ45 Gigabit LAN (1 x RJ45 internal) · esterno: 1 x RJ45-10/100/1000 Mbps |
|---|---|
| USB ports | 6 x USB2.0 (4 x USB internal) · esterno: 2 x USB |
| Serial interfaces | 4 x RS232 (3 x RS232 internal) · esterno: 1 x RS232 |
| Audio | Built in ALC886 HD Audio Codec |
| Expansion | 1 x Mini PCIe (Internal) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12V DC IN (Lockable Power Jack) |
| Power consumption | 43 W(typ · Max.backlight & high CPU load) |
| PSU power | 80 W(optional) |
| Mounting | Yoke MountVESA Mount |
|---|---|
| Chassis material | acciaio inox |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | 0~45 |
| Certifications | CEFCCRoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
