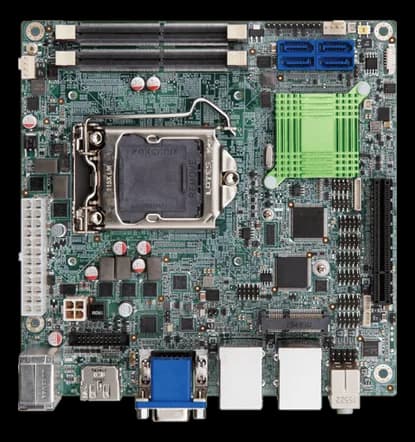

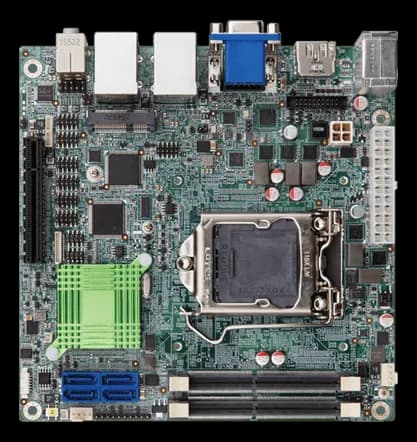

KINO-AQ170Industrial Mini-ITX motherboard with Intel Q170 chipset and LGA1151 socket
- Manufacturer
KINO-AQ170 is an industrial Mini-ITX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake). Memory reaches 64 GB.
Expansion offers PCIe x8 slots. Video outputs cover VGA, HDMI, DisplayPort, DVI and LVDS. Storage covers SATA. Operating range is declared between -20 and 60 °C.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Celeron/Pentium
- CPU generation: 7th gen (Kaby Lake)
- Processor: LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
- Watchdog: sì
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q170 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| BIOS | UEFI BIOS |
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
| Processor | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Watchdog | sì |
| Graphics | Intel® HD Graphics Gen 9 support for DX11/12, OCL 2.x, OGL 4.3/4.4, ES 2.0 / Decode/Encode for HEVC, VP8, VP9 2, VDENC |
| Maximum RAM | 64–64 GB |
|---|---|
| RAM type | DDR4 |
| Memory | Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM support up to 64GB · 64GB |
| Storage | 4 x SATA :6Gb/s(RAID 0/1/5/10 support) |
|---|
| Video outputs | Triple independent display / 1 x HDMI 2.0 (up to 4096x2160@60Hz) / 1 x HDMI/DP (up to 3840x2160@60Hz) / 1 x VGA (up to 1920x1200) / 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) |
|---|
| USB ports | 2 x USB 2.0 · 4 x USB 3.2 Gen 1 (5Gb/s) · 2 x External USB 2.0 · 4 x External USB 3.2 Gen1x1 · 4 x Internal USB 2.0 :2x4 pin, p=2.0 |
|---|---|
| Audio | Realtek ALC888S HD Audio codec / 2 x Audio jacks (line-out, mic-in) on rear IO / 1 x Front audio (2x5 pin) |
| Digital I/O | 8-bit digital I/O (2x5 pin) |
| Ethernet ports | LAN1: Intel® I219LM with (Intel® AMT 11.0 support) / LAN2: Intel® I211 PCIe controller with NCSI support · 2 x LAN LED (1x2 pin) |
| Serial interfaces | 4 x Internal RS-232 :2x5 pin, p=2.0 · 2 x Internal RS-232/422/485 :2x5 pin, p=2.0 |
| Other I/O | 1 x Front panel (1x10 pin, power LED, HDD LED, power button, reset button) · 1 x SMBus (1x4 pin) · 1 x I²C (1x4 pin) · 1 x Chassis intrusion connector (1x2 pin) |
| Form factor | Mini-ITX |
|---|
| Expansion | 1 x PCIe x8 / 1 x PCIe mini Card Slot :Full-size slot (support mSATA) |
|---|
| Power input | ATX power supply · 3.3V@0.62A, 5V@3.3A, 12V@7.51A, 5VSB@0.23A (Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory) |
|---|
| Weight | 0.45–0.45 kg |
|---|---|
| Dimensions | 170 × 170 |
| Operating temperature | −20~60 |
|---|
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
