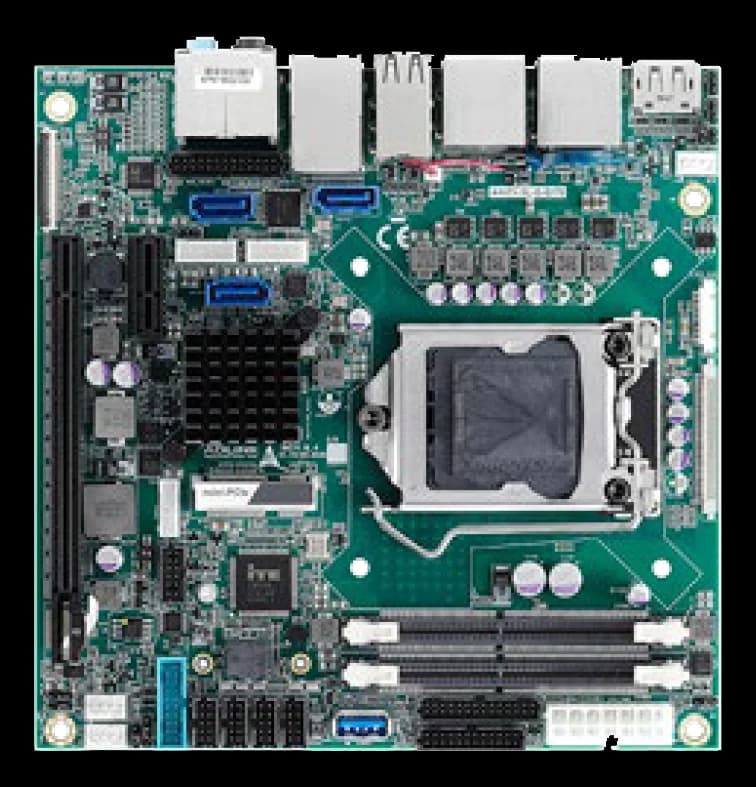

AmITX-SL-G-Q170Industrial Mini-ITX motherboard with Intel Q170/H110 chipset and LGA1151 socket
- Manufacturer
AmITX-SL-G-Q170 is an industrial Mini-ITX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake), with TDP up to 65 W. Memory reaches 32 GB.
Expansion offers PCIe x16, PCIe x1 and Mini-PCIe slots. Networking reaches Gigabit. Video outputs cover DisplayPort, LVDS and eDP. Storage covers SATA.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Celeron/Pentium
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Core™ i7-6700 Processor, 4C, 3.4/4.0 GHz, 8M, 65W Intel® Core™ i7-6700TE Processor, 4C, 2.4/3.4 GHz, 8M, 35W Intel® Core™ i5-6500 Processor, 4C , 3.2/3.6 GHz 6M, 65W Intel® Core™ i5-6500TE Processor, 4C, 2.3/3.3 GHz, 6M, 35W Intel® Core™ i3-6100 Processor, 2C, 3.7 GHz, 3M, 51W Intel® Core™ i3-6100TE Processor, 2C, 2.7 GHz, 4M, 35W Intel® Pentium® G4400 Processor, 2C, 3.3 GHz, 3M, 54W Intel® Pentium® G4400TE Processor, 2C, 2.4 GHz, 3M, 35W Intel® Celeron® G3900 Processor, 2C, 2.8 GHz, 2M, 51W Intel® Celeron® G3900TE Processor, 2C, 2.3 GHz, 2M, 35W · Intel® Core™ i7-7700 Processor, 4C, 3.6/4.2 GHz, 8M, 65W Intel® Core™ i7-7700T Processor, 4C, 2.9/3.8 GHz, 8M, 35W Intel® Core™ i5-7500 Processor, 4C, 3.4/3.8 GHz, 6M, 65W Intel® Core™ i5-7500T Processor, 4C, 2.7/3.3 GHz, 6M, 35W Intel® Core™ i3-7101E Processor, 2C, 3.9 GHz, 3M, 54W Intel® Core™ i3-7101TE Processor, 2C, 3.4GHz, 3M, 35W · Supports: Intel® VT, Intel® TXT, Intel® SSE4.2, Intel® HT Technology, Intel® 64 Architecture, Execute Disable Bit, Intel® Turbo Boost Technology 2.0, Intel® AVX2, Intel® AES-NI, PCLMULQDQ Instruction, Intel® Secure Key and Intel® TSX-NI
- TPM: Header (provision)
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q170H110 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| BIOS | AMI EFI in 16MB SPI BIOS with Intel® AMT 11.0 support (Q170 only) SPI header for external BIOS, optional onboard SPI BIOS socket |
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
| Processor | Intel® Core™ i7-6700 Processor, 4C, 3.4/4.0 GHz, 8M, 65W Intel® Core™ i7-6700TE Processor, 4C, 2.4/3.4 GHz, 8M, 35W Intel® Core™ i5-6500 Processor, 4C , 3.2/3.6 GHz 6M, 65W Intel® Core™ i5-6500TE Processor, 4C, 2.3/3.3 GHz, 6M, 35W Intel® Core™ i3-6100 Processor, 2C, 3.7 GHz, 3M, 51W Intel® Core™ i3-6100TE Processor, 2C, 2.7 GHz, 4M, 35W Intel® Pentium® G4400 Processor, 2C, 3.3 GHz, 3M, 54W Intel® Pentium® G4400TE Processor, 2C, 2.4 GHz, 3M, 35W Intel® Celeron® G3900 Processor, 2C, 2.8 GHz, 2M, 51W Intel® Celeron® G3900TE Processor, 2C, 2.3 GHz, 2M, 35W · Intel® Core™ i7-7700 Processor, 4C, 3.6/4.2 GHz, 8M, 65W Intel® Core™ i7-7700T Processor, 4C, 2.9/3.8 GHz, 8M, 35W Intel® Core™ i5-7500 Processor, 4C, 3.4/3.8 GHz, 6M, 65W Intel® Core™ i5-7500T Processor, 4C, 2.7/3.3 GHz, 6M, 35W Intel® Core™ i3-7101E Processor, 2C, 3.9 GHz, 3M, 54W Intel® Core™ i3-7101TE Processor, 2C, 3.4GHz, 3M, 35W · Supports: Intel® VT, Intel® TXT, Intel® SSE4.2, Intel® HT Technology, Intel® 64 Architecture, Execute Disable Bit, Intel® Turbo Boost Technology 2.0, Intel® AVX2, Intel® AES-NI, PCLMULQDQ Instruction, Intel® Secure Key and Intel® TSX-NI |
| TPM | Header (provision) |
| CPU TDP | 65–65 W |
| CPU threads | 500–700 |
| Graphics | Intel® 9th generation LP graphics core architecture with up to 18 execution units supporting DirectX 11/12, OGL4.3/4.4, and up to three independent, simultaneous displays |
| ECC support | no |
|---|---|
| Maximum RAM | 32–32 GB |
| RAM type | DDR4 |
| Memory | Dual channel non-ECC 2133/2400 MHz DDR4 memory up to 32GB in dual vertical SODIM sockets |
| Storage | 3x SATA 6 Gbps ports (Jumper select NA/3.3V/5V for SATA1 and SATA2 to deliver power by SATA pin7; Default is NA) 2x SATA power connector |
|---|
| Video outputs | 3x DisplayPort v1.2 with resolution up to 4096 x 2160 @ 24Hz (3x DisplayPort(Q170) , 2x DisplayPort (H110) · LVDS (optional): Single/dual channel 24-bit LVDS up to 1920x1080 @ 60 Hz (from eDP-to-LVDS converter) · eDP (optional): Supports 3840x2160 resolution @ 60Hz, 24bpp (not available concurrently with LVDS) |
|---|
| USB ports | 4x USB 3.0 and 4x USB 2.0 on rear I/O 2x USB 3.0 onboard header (H110: USB 2.0) 1x USB 3.0 on vertical connector with keep out area for dongle (H110: USB 2.0) · Q170: 7x USB 3.0, 4x USB 2.0; H110: 4x USB 3.0, 7x USB 2.0 |
|---|---|
| Audio | Realtek® ALC886 · 7.1 channel audio via 5 jacks and S/PDIF output on rear I/O 7.1 channel audio signals and S/PDIF output on internal header |
| Digital I/O | 10 GPIO via onboard feature connector |
| Ethernet ports | Intel® i219-LM (PHY) Ethernet controller (H110: i219-V) • Supports Intel® AMT 11.0 (Q170 only) • Supports Intel® vPro™ (Q170 only) Intel® i211AT (MAC/PHY) Ethernet controller 10/100/1000 GbE connection |
| Serial interfaces | 3x RS-232 headers, 1x RS-232/422/485 headers (Support NA (Default)/5V/12V by jumper selection) |
| Other I/O | 40-pin multipurpose flat cable connector for use in combination with DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS flashing, power testpoints, debug LEDs · 1x PS/2 internal header |
| Form factor | Mini-ITX |
|---|
| Expansion | 1 PCIe x16 Gen3 1 PCIe x1 Gen2 1x Mini-PCIe card (half size): supporting PCIex1(Gen 2)/USB 2.0 (top side) 1x Mini-PCIe card (full size): supporting PCIex1(Gen 2) or mSATA/USB 2.0 (bottom side) |
|---|
| Power input | Standard Input: ATX: 12V ±5% / 5Vsb ±5% AT: 12V ±5% Peripheral Output: Onboard headers for fan and SATA power ATX Power Connector (14-pin) |
|---|
| Dimensions | 170 × 170 |
|---|---|
| Other features | Supports: voltage/current monitoring, power sequence debug support, AT/ATX mode control, logistics and forensic information, flat panel control, general purpose I2C, failsafe BIOS (dual BIOS), watchdog timer and triple Smart Fan control · Local management, control of embedded computer systems Extended EAPI for monitoring, controlling and analytics applications Multiple OS support and across platforms (x86, ARM) · ITE IT8783 |
| Certifications | FCCCE |
|---|
| Operating systems | VxWorksWindowsLinux |
|---|
| CPU cores | 2–4 |
|---|
