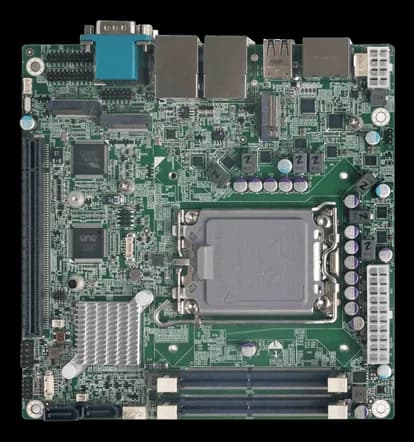

KINO-ADL-H610Industrial Mini-ITX motherboard with LGA1700 socket and Intel H610 chipset
- Manufacturer
- Configurations
- 1 available configurations
The board takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 12th, 13th and 14th generation with TDP up to 65 W; memory runs on two dual-channel DIMMs at 3200 MHz.
Networking provides two 2.5GbE ports with an Intel I226V controller; video outputs include HDMI and DisplayPort up to 4096 × 2304 @60Hz, plus the iDPM connector for eDP/LVDS/VGA modules. Storage covers two SATA 6Gb/s channels and one M.2 M key PCIe Gen3 x4 slot, with a further M.2 A key for Wi-Fi/BT modules and a PCIe x16 Gen4 slot.
The PCB measures 170 × 170 mm; the declared operating range runs from -10 to 60 °C.
At a glance
- CPU socket: LGA1700
- CPU class: Intel Celeron/Pentium
- CPU generation: 14th gen (Raptor Lake-R)
- TPM: PTT / fTPM (firmware)
- CPU TDP: 65 W
Technical specifications
| CPU socket | LGA1700 |
|---|---|
| Chipset | H610H610E |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| BIOS | AMI UEFI BIOS |
| CPU generation | 14th gen (Raptor Lake-R)12th gen (Alder Lake)13th gen (Raptor Lake) |
| TPM | PTT / fTPM (firmware) |
| Watchdog | Yes(sec · 1-255) |
| CPU TDP | 65 W |
| Maximum RAM | 64 GB |
|---|---|
| RAM type | DDR4 |
| Storage | 2 x SATA |
|---|
| Video outputs | 1 x LVDS1 x VGA1 x eDP1 x Display Port : up to 4096 x 2304 @60Hz1 x iDPM : support iEi eDP/ LVDS/ VGA module1 x DP 1.4a (up to 4096 x 2304 @60Hz)(DisplayPort)DP 1.4a, HDMI 2.0b & iDPM slot for eDP/ LVDS/VGA module(DisplayPort)DP 1.4a, HDMI 2.0b, iDPM(DisplayPort) |
|---|
| USB ports | 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)2 x Internal USB 2.0 : 2x4 pin, P=2.02 x USB 3.2 Gen2 (Type-A) (10Gb/s)2 x USB 3.2 Gen1 (Type-A) (5Gb/s)2 x USB 2.0 (Type-A)2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A) |
|---|---|
| Digital I/O | 1 x 12-bit digital I/O (2x7 pin,P=2.0)(bidir) |
| Ethernet ports | 2 x USB 3.2 Gen2 (Type-A) (10Gb/s)2 x LAN - |
| Serial interfaces | 2 x External RS-232/422/485 : RS-485 support AFC4 x Internal RS-232 : 2x5 pin, P=2.0 |
| Other I/O | 1 x I2C/SMBUS (1x4 pin,P=1.25) |
| Form factor | Mini-ITX |
|---|
| Expansion | 1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0) for wifi/BT1 x PCIe x16 : Gen4 slot with x16 Signal1 x PCIe x16 : Gen4 slot with x16 Signal **Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storag(storage)1 x PCIe x16: Gen4 slot with x16 Signal **Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storage(2242 · x4 · M.2) |
|---|
| Weight | 0.7 kg1.2 kg(net) |
|---|
| Operating temperature | -10–60 °C |
|---|---|
| Storage temperature | -30–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| KINO-ADL-H610-R11 |
