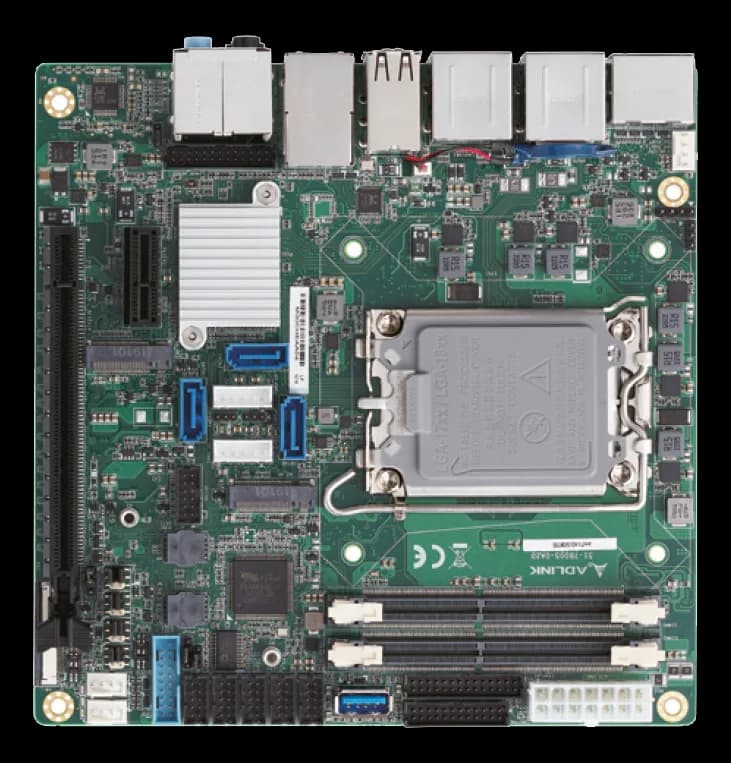

AmITX-AD-GIndustrial Mini-ITX motherboard with Intel Q670E/H610E chipset and LGA1700 socket
- Manufacturer
AmITX-AD-G is an industrial Mini-ITX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 12th Gen (Alder Lake), 13th Gen (Raptor Lake) and 14th Gen (Raptor Lake-R), with TDP up to 65 W. Memory reaches 32 GB.
Expansion offers PCIe x16, PCIe x4, PCIe x1 and M.2 slots. Video outputs cover DisplayPort. Storage covers SATA.
At a glance
- CPU socket: LGA1700
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 12th gen (Alder Lake)
- Processor: Intel® Core™ i7-14700 Processor Intel® Core™ i7-14700T Processor Intel® Core™ i5-14500T Processor Intel® Core™ i3-14100 Processor Intel® Core™ i3-14100T Processor Intel® Core™ i7-12700 Processor Intel® Core™ i7-12700E Processor Intel® Core™ i7-12700TE Processor Intel® Core™ i5-12500 Processor Intel® Core™ i5-12500E Processor Intel® Core™ i5-12500TE Processor Intel® Core™ i5-12400 Processor Intel® Core™ i3-12100E Processor Intel® Core™ i3-12100 Processor Intel® Core™ i3-12100TE Processor Intel® Pentium® Gold G7400TE Processor Intel® Pentium® Gold G7400E Processor Intel® Celeron® Processor G6900E Intel® Celeron® Processor G6900TE
- TPM: TPM 2.0
Technical specifications
| CPU socket | LGA1700 |
|---|---|
| Chipset | H610EQ670E |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| BIOS | EFI in 16MB SPI BIOS Optional SPI BIOS socket onboard and SPI header for external BIOS, dual BIOS support TPM module soldered onboard Precision RTC (optional) |
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
| Processor | Intel® Core™ i7-14700 Processor Intel® Core™ i7-14700T Processor Intel® Core™ i5-14500T Processor Intel® Core™ i3-14100 Processor Intel® Core™ i3-14100T Processor Intel® Core™ i7-12700 Processor Intel® Core™ i7-12700E Processor Intel® Core™ i7-12700TE Processor Intel® Core™ i5-12500 Processor Intel® Core™ i5-12500E Processor Intel® Core™ i5-12500TE Processor Intel® Core™ i5-12400 Processor Intel® Core™ i3-12100E Processor Intel® Core™ i3-12100 Processor Intel® Core™ i3-12100TE Processor Intel® Pentium® Gold G7400TE Processor Intel® Pentium® Gold G7400E Processor Intel® Celeron® Processor G6900E Intel® Celeron® Processor G6900TE |
| TPM | TPM 2.0 |
| CPU TDP | 65–65 W |
| CPU threads | 100–700 |
| Graphics | Intel® 12th/13th/14th generation graphics core architecture (Intel® Xe Architecture) with up to 32 execution units supporting DirectX 12, OGL4.6, and up to four independent, simultaneous displays |
| Maximum RAM | 32–32 GB |
|---|---|
| ECC support | no |
| RAM type | DDR4 |
| Memory | Dual channel non-ECC 3200 MHz DDR4 memory up to 32GB in dual vertical SODIMM sockets |
| Storage | 3x SATA 6 Gbps ports (Jumper select NA/3.3V/5V for SATA1 and SATA2 to deliver power by SATA pin7; Default is NA) 2x SATA power connector |
|---|
| Video outputs | Up to 4x DisplayPort v1.2 with max resolution of 4096x2304@60Hz 4x DisplayPort(Q670E), 3x DisplayPort (H610E) |
|---|
| USB ports | 4x USB 3.2 Gen 1 and 4x USB 2.0 on rear I/O 2x USB 3.2 Gen 1 onboard header (H610E : 1x USB 2.0) 1x USB 3.2 Gen 1 on vertical connector with keep out area for dongle (H610E: USB 2.0) |
|---|---|
| Audio | Realtek® ALC888S · 7.1 channel audio via 5 jacks and S/PDIF output on rear I/O 7.1 channel audio signals and S/PDIF output on internal header |
| Digital I/O | 8x GPIO via onboard feature connector |
| Ethernet ports | 2x Realtek RTL8119-CG Ethernet controller · PCI Express x1 Bus 10/100/1000 connection |
| Serial interfaces | 1x RS-232/422/485 on internal header 3x RS-232 on internal headers 1x RS232/CCTALK x2 on internal header |
| Other I/O | 40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS, flashing, power testpoints, debug LEDs |
| Form factor | Mini-ITX |
|---|
| Expansion | 1x PCIe x16 Gen4 slot 1x PCIe x1 Gen3 slot 2x M.2 (M key, Support 2242 and NVMe boot) M.2 #1 (Q670E: PCIe 3.0 ×4; H610E: PCIe 3.0 x4 and w/ SATA interface) M.2 #2 (Q670E: PCIe 3.0 ×4; H610E: PCIe 3.0 x1 and w/o SATA interface) 1x SPI header for external BIOS |
|---|
| Power input | ATX: 12V ±5% / 5Vsb ±5% · 12V ±5% · Onboard headers for fan and SATA power ATX Power Connector (14-pin) |
|---|
| Dimensions | 170 × 170 |
|---|---|
| Other features | Supports: voltage monitoring, system and CPU temperature monitoring, smart fan control, logistics and forensic information, general purpose I2C, watchdog timer |
| Certifications | FCCCE |
|---|
| CPU cores | 2–20 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
