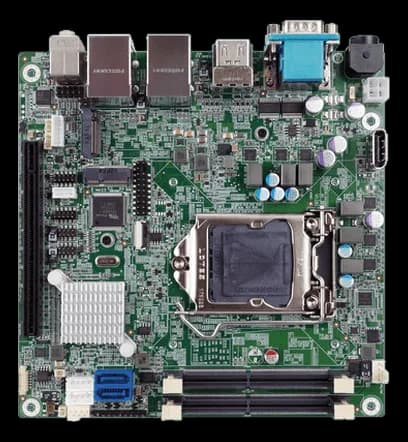

KINO-DH310Industrial Mini-ITX motherboard with Intel H310 chipset and LGA1151 socket
- Manufacturer
KINO-DH310 is an industrial Mini-ITX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 8th Gen (Coffee Lake) and 9th Gen (Coffee Lake-R), with TDP up to 35 W. Memory reaches 64 GB.
Expansion offers PCIe x16, PCIe x1 and M.2 slots. Networking reaches Gigabit. Video outputs cover HDMI and DisplayPort. Storage covers SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 9th gen (Coffee Lake-R)
- Processor: LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
- TPM: Header (provision)
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | H310 |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| BIOS | AMI UEFI BIOS |
| CPU generation | 9th gen (Coffee Lake-R)8th gen (Coffee Lake) |
| Processor | LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W) |
| TPM | Header (provision) |
| Watchdog | sì |
| CPU TDP | 35–35 W |
| Graphics | Intel® HD Graphics Gen9 Engines with Low power 16 execution unit, supports DX11.3/12, OpenGL 4.3/4.4/4.5and OpenCL1.2/2.0/2.1 |
| Maximum RAM | 64–64 GB |
|---|---|
| RAM type | DDR4 |
| Memory | Two 260-pin 2666/2400 MHz Dual-channel DDR4 SDRAM Unbuffered SO-DIMM slots supported up to 64GB · 64GB |
| Storage | 2 x SATA 6Gb/s with 5/12V SATA power connector (No RAID) |
|---|
| Video outputs | Dual independent display / 2 x HDMI (up to 4096x2160@30Hz) / 1 x internal DisplayPort (up to 4096x2304@60Hz) (optional) |
|---|
| USB ports | 4 x USB 3.2 Gen 1 (5Gb/s) · 4 x USB 2.0 (2x4 pin, P=2.0) |
|---|---|
| Audio | Realtek ALC888S HD Audio codec / 2 x Audio Jack (Lin-out, Mic-in) / 1 x Front audio (2x5 pin) |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Ethernet ports | LAN1: Realtek RTL8111H PCIe GbE controller / LAN2: Realtek RTL8111H PCIe GbE controller · 2 x LAN LED (1x2 pin) |
| Serial interfaces | 2 x RS-232 · 1 x RS-422/485 (1x4 pin, P=2.0) · 1 x RS-232 (2x5 pin, P=2.0) |
| Other I/O | 1 x KB/MS (1x6 pin) · 2 x SATA 6Gb/s with 5/12V SATA power connector (No RAID) · 1 x I²C (1x4 pin) · 1 x SMBus (1x4 pin) · 1 x Front Panel (1x10 pin, Power LED, HDD LED, Power Button, Reset Button) · 2 x Smart fan connector (1x4 pin) · 1 x Chassis intrusion (1x2 pin) |
| Form factor | Mini-ITX |
|---|
| Expansion | 1 x PCIe x16 / 1 x M.2 M key (2280, Gen2 PCIe x2 only) / 1 x M.2 A Key (2230, PCIe x1 & USB 2.0) |
|---|
| Power input | DC 12V input / 1 x External DC jack (4-pin DIN) / 1 x Internal power connector (2x2 pin) / Support AT/ATX mode / ErP/EuP Compliant · 12V@11.32A (Intel® Core™ i7-8700 up to 4.60 GHz CPU with two 8GB 2666MHz DDR4 memory) |
|---|
| Weight | 0.4–0.4 kg |
|---|---|
| Dimensions | 170 × 170 |
| Operating temperature | 0~60 |
|---|---|
| Storage temperature | -10–70 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
