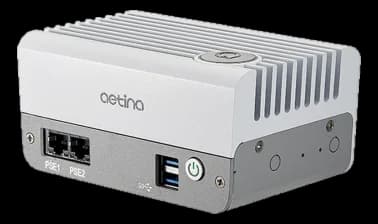

AIE-CN12Edge AI computer Jetson Xavier NX 8GB with Gigabit Ethernet PoE PSE
- Manufacturer
- Configurations
- 1 available configurations
AIE-CN12 combines AI processing and field connectivity in a 0.97 kg box, designed for line panels and control stations where networked cameras and sensors are powered and read over the same cable.
Two ports supply power to the connected devices to IEEE 802.3af, while the exchange with the automation goes through CAN bus and a serial port. The declared storage temperature runs from -40 to 85 °C.
At a glance
- AI module: NVIDIA Jetson Xavier NX
- AI performance: Up to 40
- CPU class: ARM
- Storage: 16GB eMMC 5.1 Flash
- USB ports: 1× USB OTG (Type-C)
Technical specifications
| AI module | NVIDIA Jetson Xavier NX |
|---|---|
| AI performance | Up to 40 |
| CPU class | ARM |
| Storage | 16GB eMMC 5.1 Flash |
|---|
| Video outputs | 1× HDMI 2.0 (micro-HDMI Type-D) |
|---|
| Ethernet ports | 3× GbE (RJ-45), 2 con PoE PSE 802.3af |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× UART |
| Audio | HDMI Integrated |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT, GPS)1× M.2 M-Key 2242 (NVMe 128G SSD integrato) |
|---|
| AC/DC input | DC |
|---|
| Mounting | DIN Rail MountVESA Mount |
|---|---|
| Dimensions | 132.6 × 63.6 × 88.7 mm |
| Weight | 0.97 kg |
| Operating temperature | -20–50 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-CN12-1-A1 |
