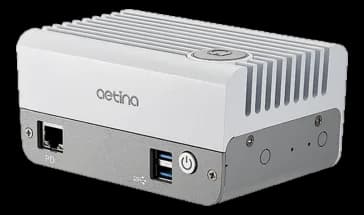

AIE-CN21Edge AI computer with Jetson Xavier NX 8GB or 16GB modules
- Manufacturer
- Configurations
- 1 available configurations
AIE-CN21 is an Aetina edge AI platform for local processing of images and signals: it weighs 0.97 kg and fits into line panels, machines and inspection stations, where the data has to be interpreted on the spot.
The connection toward the automation goes through CAN bus and a serial port, with a DC power input. The declared storage temperature covers from -40 to 85 °C.
At a glance
- CPU class: ARM
- Storage: 16GB eMMC 5.1 Flash
- USB ports: 1× USB OTG (Type-C)
- Serial interfaces: 1× UART
- Expansion: 1× M.2 E-Key 2230 (Wi-Fi/BT, GPS)
Technical specifications
| AI module | NVIDIA Jetson Xavier NX(optional) |
|---|---|
| CPU class | ARM |
| Storage | 16GB eMMC 5.1 Flash |
|---|
| Video outputs | 1× HDMI 2.0 (micro-HDMI Type-D) |
|---|
| Ethernet ports | 2× GbE (RJ-45), 1 con PoE PD 802.3af |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× UART |
| Audio | HDMI Integrated |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT, GPS)1× M.2 M-Key 2242 (NVMe 128G SSD integrato) |
|---|
| AC/DC input | DC |
|---|---|
| Power consumption | 3.29–26.76 W |
| Mounting | DIN Rail MountVESA Mount |
|---|---|
| Dimensions | 132.6 × 63.6 × 88.7 mm |
| Weight | 0.97 kg |
| Operating temperature | -20–50 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-CN21-1-A1 |
