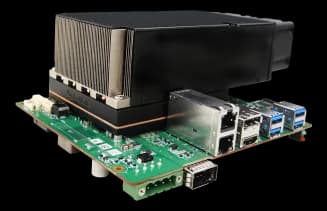

AIB-AT78_68ARM embedded system with NVIDIA Blackwell GPU, 128 GB LPDDR5X, 9–48 V DC input
- Manufacturer
- Configurations
- 2 available configurations
Expansion: M.2 M-Key 2280 slot (1 TB NVMe included), M.2 B-Key 3042/3052 slot for LTE/4G/5G modules, M.2 E-Key 2230 slot for WiFi/BT, Micro SIM slot. Video outputs: 1× HDMI 2.0b, 1× DisplayPort 1.4a.
Interfaces: 4× USB 3.2 Gen2, 1× USB-C OTG only, 2× UART 3.3 V, 2× RS232/RS485/RS422 on RJ45, 4× isolated CAN FD (T5000 only), 4× isolated DI/DO 3.3 V on RJ45, 1× HD Audio in/out. Optional QSFP28 slot: 4× 25 GbE (T5000), 3× 25 GbE (T4000). Power: 9–48 V DC.
Dimensions: 187.4 × 145.53 × 42.78 mm without heatsink, with bracket; 213.7 × 145.53 × 83.44 mm with heatsink and bracket. Weight: 1.485 kg. Temperature: operating -25 to 70 °C, storage -40 to 85 °C. CE, UKCA, FCC Class A. OS: Linux.
At a glance
- CPU class: ARM
- Memory: 128 GB LPDDR5X high-speed memory
- Storage: 1× M.2 M-Key 2280 (NVMe 1TB built-in)
- USB ports: 1× USB-C for OTG only
- Serial interfaces: 2× UART @ 3.3V
Technical specifications
| CPU class | ARM |
|---|---|
| Graphics | NVIDIA Blackwell architecture GPU |
| Memory | 128 GB LPDDR5X high-speed memory |
|---|
| Storage | 1× M.2 M-Key 2280 (NVMe 1TB built-in) |
|---|
| Video outputs | 1× DP 1.4a1x HDMI 2.0b |
|---|
| Ethernet ports | 1x HD Audio-in/out4x CAN FD (Isolation, Support for T5000 only)2x RS232/RS485/RS422(RJ45)4x DI/DO (Isolation) @3.3V(RJ45)1× QSFP28 slot (T5000: 4× 25 GbE, T4000: 3× 25 GbE)(optional) |
|---|---|
| USB ports | 1× USB-C for OTG only4× USB 3.2 Gen2 |
| Serial interfaces | 2× UART @ 3.3V |
| Audio | 1× HD Audio-in/out |
| Wireless | 4G/LTE5G |
|---|
| Expansion | 1× M.2 M-Key 2280 (NVMe1TB built-in)1x M.2 B-Key 3042/3052 (LTE/4G/5G)1x M.2 E-Key 2230 (WiFi/BT)1x Micro SIM card slot |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | DC-in 9V-48V |
| Dimensions | L:187.4 mm x W:145.53mm x H:42.78mm (w/o fantsink, with bracket)L:213.7 mm x W:145.53mm x H:83.44mm (with fantsink & bracket) |
|---|---|
| Weight | 1.485 kg |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIB-AT68-1-A1 |
| AIB-AT78-1-A1 |
