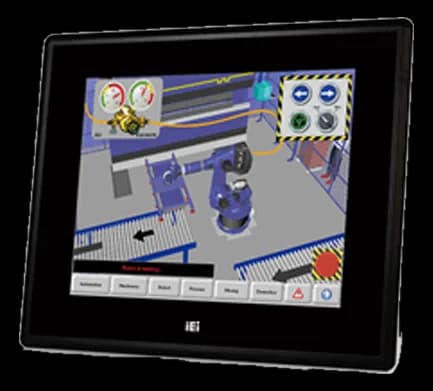

DM-F65ACompact 6.5" industrial panel-mount monitor with 6 W consumption
- Manufacturer
DM-F65A is an IEI panel-mount monitor in a compact format, intended for electrical cabinets, machines and stations where space on the cabinet front is limited. The front, rated IP65, withstands dust and water jets during washdowns.
The panel reaches a brightness of 800 cd/m² and the backlight has a declared life of 50,000 hours; the operating temperature runs from -20 to 60 °C and storage from -20 to 70 °C.
At a glance
- Display size: 6.5 ″
- Brightness: 600-999 outdoor cd/m²
- Touchscreen: Resistive
- Video inputs: VGA
- Contrast ratio: 600:1
Technical specifications
| Display size | 6.5 ″ |
|---|---|
| Resolution | 640x480 VGA(max) |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive |
| Video inputs | VGA |
| Display colors | 16.2M |
| OSD controls | Smart OSD Software5-key membrane OSD keypad |
| Viewing angle | 160° / 140° |
| Contrast ratio | 600:1 |
| Backlight MTBF | 50000 h |
| Touch controller | Penmount 6000 |
| Pixel pitch | 0.207 x 0.207 mm |
| USB ports | 1× USB 2.0 (touch) |
|---|---|
| Other I/O | 1× Lockable 12V DC jack |
| Serial interfaces | 1× RS-232 (reserved for resistive touch ATO) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 6 W |
| Mounting | Rack MountPanel MountVESA Mount(75x75) |
|---|---|
| Weight | 1.1 kg |
| Chassis color | Black(Black C) |
| Cutout dimensions | 180 × 140 mm |
| Dimensions | 154.36 × 42.88 × 191.8 mm |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–70 °C |
| Operating temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
