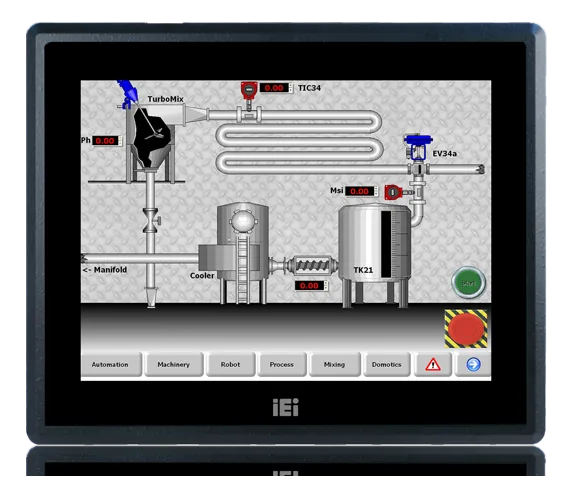

DM-F12AIndustrial monitor with pcap or resistive touch and IP65 front
- Manufacturer
- Configurations
- 2 available configurations
DM-F12A is an IEI industrial monitor for machine cabinets and operator stations; mounting is provided on a rack, on a panel or on a desk stand, so as to cover both cabinet integration and bench use.
The DC input accepts 9~36 V, the pixel pitch is 0.24 mm and the frame combines aluminium and metal; the permitted storage temperature runs from -20 to 70 °C.
The product is CE marked and FCC certified.
At a glance
- Brightness: 600-999 outdoor cd/m²
- Touchscreen: PCAP
- Contrast ratio: 700 : 1
- Backlight MTBF: 50000 h
- USB ports: 1× USB 2.0 (touch)
Technical specifications
| Resolution | 1024x768 XGA(max) |
|---|---|
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | PCAPResistive |
| Aspect ratio | 4:3 |
| Contrast ratio | 700 : 1 |
| Touch controller | 5-wire resistive single touch window/ Penmount 6000EETI EXC3188 (Anti-UVEETI EXC7200Penmount 6000 (Anti-glare Surface) |
| Backlight MTBF | 50000 h |
| Viewing angle | 160° /140° |
| Pixel pitch | 0.24 x 0.24 mm |
| Display colors | 16.2M |
| Surface treatment | Anti-glare (AG) |
| OSD controls | 7-key membrane OSD keypadSmart OSD Software |
| USB ports | 1× USB 2.0 (touch) |
|---|---|
| Serial interfaces | 1× RS-232 (reserved for resistive touch ATO) |
| Other I/O | 1× Lockable 9V-36V DC jack · 1 x 9V-36V terminal block |
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–36 V DC |
| Power consumption | 18–19.8 W |
| Mounting | Desktop / StandPanel MountRack MountVESA Mount(100x100)VESA Mount(75x75) |
|---|---|
| Dimensions | 262.2 × 322.2 × 40.5 mm |
| Cutout dimensions | 244.8 × 304.8 mm |
| Chassis material | Aluminum, metal |
| Chassis color | Black(Black C) |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -20–70 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DM-F12A/PC-R32 |
| DM-F12A/R-R31 |
