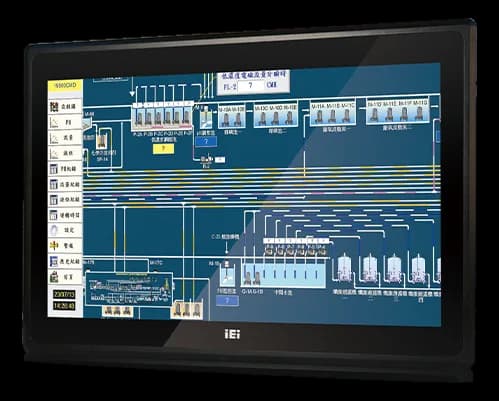

DM-F22A21.5" industrial panel-mount monitor with PCAP capacitive touchscreen
- Manufacturer
- Configurations
- 1 available configurations
DM-F22A is an IEI industrial panel-mount monitor for operator interfaces and visualization on machines, cabinets and supervisory stations. The chassis is aluminum and metal, and the display surface has an anti-glare treatment to limit reflections.
The panel combines a brightness of 250 cd/m² with a contrast ratio of 1000:1; the DC power input accepts voltages from 9 to 36 V, a range that covers the DC lines typical of industrial cabinets.
At a glance
- Display size: 21.5 ″
- Brightness: Up to 399 standard cd/m²
- Touchscreen: PCAP
- Video inputs: VGA
- Contrast ratio: 1000 : 1
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD(max) |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP |
| Video inputs | VGA |
| Display colors | 16.7M |
| Touch points | 10-point Projected capacitive touch window(pcap) |
| OSD controls | Smart OSD Software7-key membrane OSD keypad |
| Surface treatment | Anti-glare (AG) |
| Viewing angle | 170° / 160°178° / 178° |
| Contrast ratio | 1000 : 1 |
| Backlight MTBF | 30000 h |
| Touch controller | EETI EXC3188EETI EXC7200 |
| Pixel pitch | 0.25 x 0.25 mm |
| USB ports | 1× USB 2.0 (touch) |
|---|---|
| Other I/O | 1× Lockable 9V-36V DC jack · 1× 9V-36V terminal block |
| Serial interfaces | 1× RS-232 (reserved for resistive touch ATO) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 21.6–22.5 W |
| Mounting | Panel MountDesktop / StandVESA Mount(100x100) |
|---|---|
| Chassis color | Black(Black C) |
| Cutout dimensions | 340 × 532 mm |
| Dimensions | 358.4 × 550.4 × 49.1 mm |
| Chassis material | alluminio, metallo |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–60 °C |
| Operating temperature | -10–50 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DM-F22A/PC-R31 |
