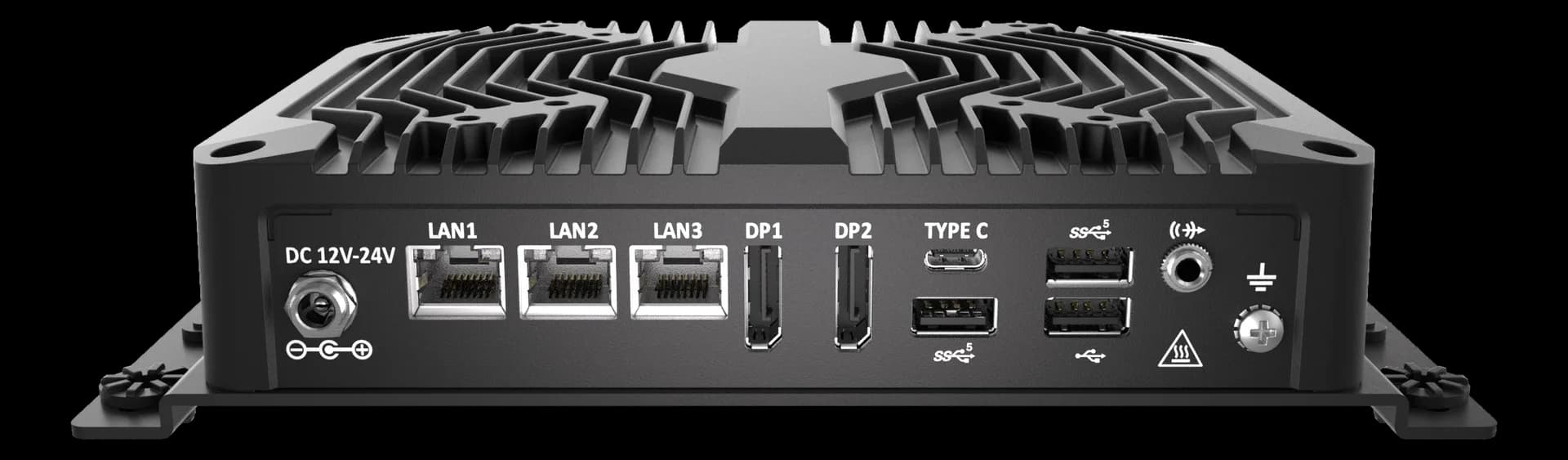

BCO-500-MTLIntel Core Ultra embedded computer with AI Boost NPU and Arc graphics
- Manufacturer
- Configurations
- 2 available configurations
BCO-500-MTL is a fanless embedded computer for operator stations and local AI inference, for installation on a wall, on a VESA bracket or on an optional DIN rail: extruded aluminum chassis of 225 × 130 × 48 mm and 2 kg, operation from -20 to 60 °C, CE, FCC, UL and UKCA certifications.
The Core Ultra 5 125U with Intel AI Boost NPU and integrated Arc graphics is paired with DDR5-5600 up to 48 GB, an M.2 NVMe SSD and TPM 2.0 with PTT/fTPM; the I/O offers three 2.5GbE LAN, USB-C, two serial ports on DB9 and two DisplayPort, with Wi-Fi, Bluetooth, 4G and 5G modules on M.2 and a 150 W power supply protected against overvoltage, overload, transients and reverse polarity.
At a glance
- CPU generation: Core Ultra Series 1
- AI module: Intel AI Boost (NPU)
- Memory: 1× SO-DIMM DDR5 5600 MT/s (262 pin), max 48 GB, non-ECC
- RAM type: DDR5
- Maximum RAM: 48 GB
Technical specifications
| CPU generation | Core Ultra Series 1 |
|---|---|
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core), 15W(optional) |
| Chipset | SoC |
| Graphics | integrated Intel® Arc™ GPU |
| AI module | Intel AI Boost (NPU) |
| Memory | 1× SO-DIMM DDR5 5600 MT/s (262 pin), max 48 GB, non-ECCDDR5 5600 MT/s SO-DIMM, fino a 48 GB |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 48 GB |
| Storage | 1× M.2 M-Key (2280, PCIe x4 Gen 4/SATA), SSD NVMe/SATA auto-detect1× M.2 B-Key (3042/3052), NVMe o espansione1× M.2 M-Key (2280), SSD NVMe1× M.2 M-Key, NVMe/SATA auto-detect1TB M.2 (opzione ordering)(optional)128GB M.2 (opzione ordering)(optional)2TB M.2 (opzione ordering)(optional)256GB M.2 (opzione ordering)(optional)512GB M.2 (opzione ordering)(optional) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 2× DisplayPortLVDS Signal DF13 Wafer2× DP++ 1.4 (max 3040×2160 @60Hz)(3040x2160 · DisplayPort) |
| Ethernet ports | 3× 2.5GbE3× LAN |
|---|---|
| USB ports | 2× USB 2.0 frontali (wafer)1× USB 3.2 (Type-C, 5 Gbps)1× Type-C1× USB 2.01× USB 3.2 Gen 1 (Type-C)(5 Gbps)2× USB 3.2 Gen 1(5 Gbps) |
| Serial interfaces | 2× DB9 (COM1: RS-232/422/485, COM2: RS-232)2× DB9 |
| Audio | Realtek® ALC897 CODEC |
| Other I/O | 6x Antenna Holes · 1x Power Button |
| Wireless | Wi-FiBluetooth4G/LTE5G |
|---|
| Expansion | 1× M.2 B-Key (3042/3052, PCIe x2 + USB 3.0 + USB 2.0), per 4G/5G/NVMe1× M.2 E-Key (2230, PCIe + USB 2.0), per Wi-Fi/Bluetooth |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Mounting | VESA MountWall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 225 × 130 × 48 mm |
| Weight | 2 kg |
| Chassis material | alluminio, metallo(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -20–75 °C |
| Certifications | ULFCCUKCACERoHS(3) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-500-MTL-125U-3L-Barebone V.10 |
| BCO-500-MTL-155U-3L-Barebone /V.10 |
