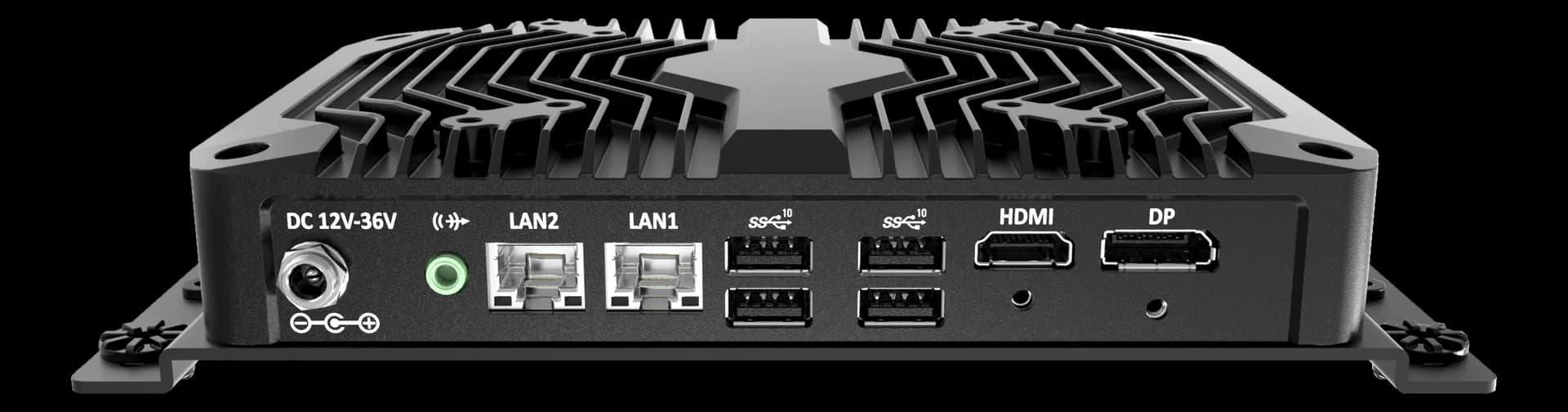

BCO-500-ADLFanless embedded computer with DIN rail, VESA or wall mounting
- Manufacturer
- Configurations
- 2 available configurations
BCO-500-ADL is a fanless embedded computer for panels and operator stations, for installation on DIN rail, on a VESA bracket or on a wall: extruded aluminum chassis of 225 × 41 × 130 mm and 1.2 kg, certified to CE, FCC, UKCA and UL, compliant with RoHS 3.
The 12th generation Intel platform (Alder Lake-N N97 quad-core, 12–15 W) is paired with DDR5 up to 32 GB, a preinstalled 128 GB M.2 SSD and TPM 2.0; the I/O offers two Intel 2.5GbE LAN, four USB 3.2 Gen 2, two serial ports on DB9 and DisplayPort and 4K HDMI outputs, with Wi-Fi and Bluetooth on M.2. Orderable versions include BCO-500-ADL-N97-2L-Barebone and BCO-500-ADL-N305-2L-Barebone.
At a glance
- CPU generation: 12th gen (Alder Lake)
- CPU TDP: 12–15 W
- Memory: 1× SO-DIMM DDR5 4800/5600 MT/s (262 pin), max 32 GB, non-ECC
- RAM type: DDR5
- Maximum RAM: 32 GB
Technical specifications
| CPU generation | 12th gen (Alder Lake) |
|---|---|
| Processor | 12th Gen Intel® IoTG Alder Lake-N Processor N97, QC, 12W(optional) |
| Chipset | SoC |
| CPU TDP | 12–15 W |
| Memory | 1× SO-DIMM DDR5 4800/5600 MT/s (262 pin), max 32 GB, non-ECCDDR5-4800 SO-DIMM 32 GB, wide temperature GBfino a 32 GB |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 32 GB |
| Storage | M.2 B-Key con SSD 128 GB preinstallato1× M.2 B-Key (2042/2280/3042, SATA/PCIe x1)1× M.2 B-Key (2242/2280/3042, SATA/PCIe x1)1TB M.2 (opzione ordering)(optional)128GB M.2 (opzione ordering)(optional)256GB M.2 (opzione ordering)(optional)512GB M.2 (opzione ordering)(optional) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× HDMI 1.4b (4K)3840 x 2160 @30Hz and 4096 x 2304 @60Hz1× DisplayPort 1.4a (4K)1× HDMI 1.4b (max 3840×2160 @30Hz)(3840x2160)1× DisplayPort 1.4a (max 4096×2304 @60Hz)(4096x2304) |
| Ethernet ports | 2× 2.5GbE (Intel I225-V)2× 2.5GbE (RJ45) |
|---|---|
| USB ports | 4× USB 3.2 Gen 2(10 Gbps) |
| Serial interfaces | 2× DB9 (COM1: RS-232/422/485, COM2: RS-232)2× DB9 |
| Audio | Realtek ALC8971× Line-out |
| Other I/O | 6x Antenna Holes · 1x Power button · 1x DC in Power Jack with Lock |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 E-Key (2230, PCIe x1 + USB 2.0), Wi-Fi/Bluetooth |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–36 V |
| Mounting | VESA MountDIN Rail MountWall Mount |
|---|---|
| Dimensions | 225 × 41 × 130 mm |
| Weight | 1.2 kg |
| Chassis material | alluminio, metallo(extruded) |
| Cooling | Fanless |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | UKCAFCCCEULRoHS(3) |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| BCO-500-ADL-N305-2L-Barebone |
| BCO-500-ADL-N97-2L-Barebone |
