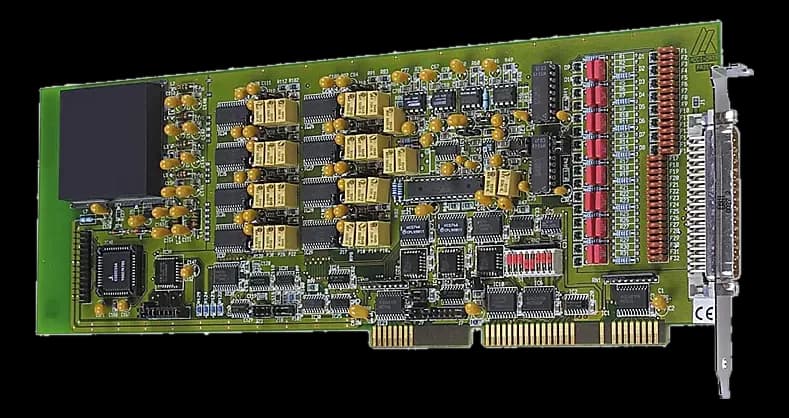

APCI-3116-816-bit PCI acquisition board with analog outputs
- Manufacturer
The acquisition section works at 200 kHz with input scales programmable in software for each channel, from bipolar to unipolar scales and up to the current option.
The voltage outputs cover the range from -10 to +10 V and are protected against short circuit. The inputs are protected against overvoltage up to ±40 V and filtered against high-frequency noise.
At a glance
- Channels: 8
- Board function: Analog and digital I/O
- Architecture standard: PCI
- Power input: DC V
Technical specifications
| Connectors | D-Sub(male)D-Sub(male · front) |
|---|
| Channels | 8 |
|---|---|
| ADC resolution | 16-bit bit(software) |
| Acquisition specifications | 11-bit(accuracy) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori, PC→periferia)(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | Data to the PC through FIFO memory,PCI 32 bit, 3,3/5 V (spec. 2.1 PCISIG) |
| Power input | DC V |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
