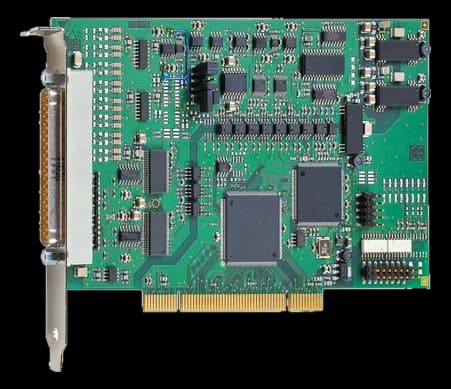

APCI-3110-1612-bit PCI board with 16 analog inputs and 4 analog outputs
- Manufacturer
The analog outputs cover the range from -10 to +10 V with 12-bit resolution, while the inputs reach a conversion frequency of 200 kHz with scales programmable per channel.
The digital section carries inputs and outputs at 24 V, TTL lines and timers, kept apart from the analog part. Overvoltage protection is rated ±40 V and EMC is verified to the EN 61326 series.
At a glance
- Watchdog: Yes
- Channels: 16 channel
- ADC resolution: 12-bit bit
- Sampling rate: 200
- Analog input range: ±1 V
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 4× DI 24 V isolati + 4× DO 24 V isolati + 24× TTL I/O |
|---|---|
| Connectors | N-pin connector(male)D-Sub(male · front) |
| Channels | 16 channel |
|---|---|
| Counter | 3 timer + 3 contatori, 16 bit |
| ADC resolution | 12-bit bit |
| Sampling rate | 200 |
| Analog input range | ±1 V±2 V0-1 V0-2 V±5 V0-5 V±10 V0-10 V |
| DAC resolution | 12-bit bit |
| Analog output range | ±10 V |
| Trigger modes | Internal timerSoftwareExternal digital trigger(24 V) |
| Acquisition specifications | 4 uscite analogiche isolate, 12 bit: ±10 V, ±5 mA max, setup 15 µs(output)Ingressi analogici: 0–10 V, ±10 V, 0–5 V, ±5 V, 0–2 V, ±2 V, 0–1 V, ±1 V; 0–20 mA opzionale (programmabili via software per canale)(range)Precisione uscite analogiche: 11 bit(accuracy)Guadagno PGA x1, x2, x5, x10 programmabile via software per canale(accuracy) |
| Isolation | Yes |
| Isolation voltage | 1000 V through opto-couplers from PC to peripheral(ch sys) |
| I/O protection | Overvoltage(± 40 V) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | Data to the PC through FIFO memory, Interrupt at EOC (End Of Conversion), DMA transfer at EOCPCI 32-bit 3.3/5V acc. to spec. 2.2 (PCISiG) |
| Power input | DC V |
|---|
| Dimensions | 175 × 99 mm |
|---|
| Operating temperature | 0–60 °C |
|---|
| Certifications | IEC 61010-1 |
|---|
| Driver & SDK | Through write/read commands |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
