APCe8675Eight-lane PCI Express carrier for one XMC module
- Manufacturer

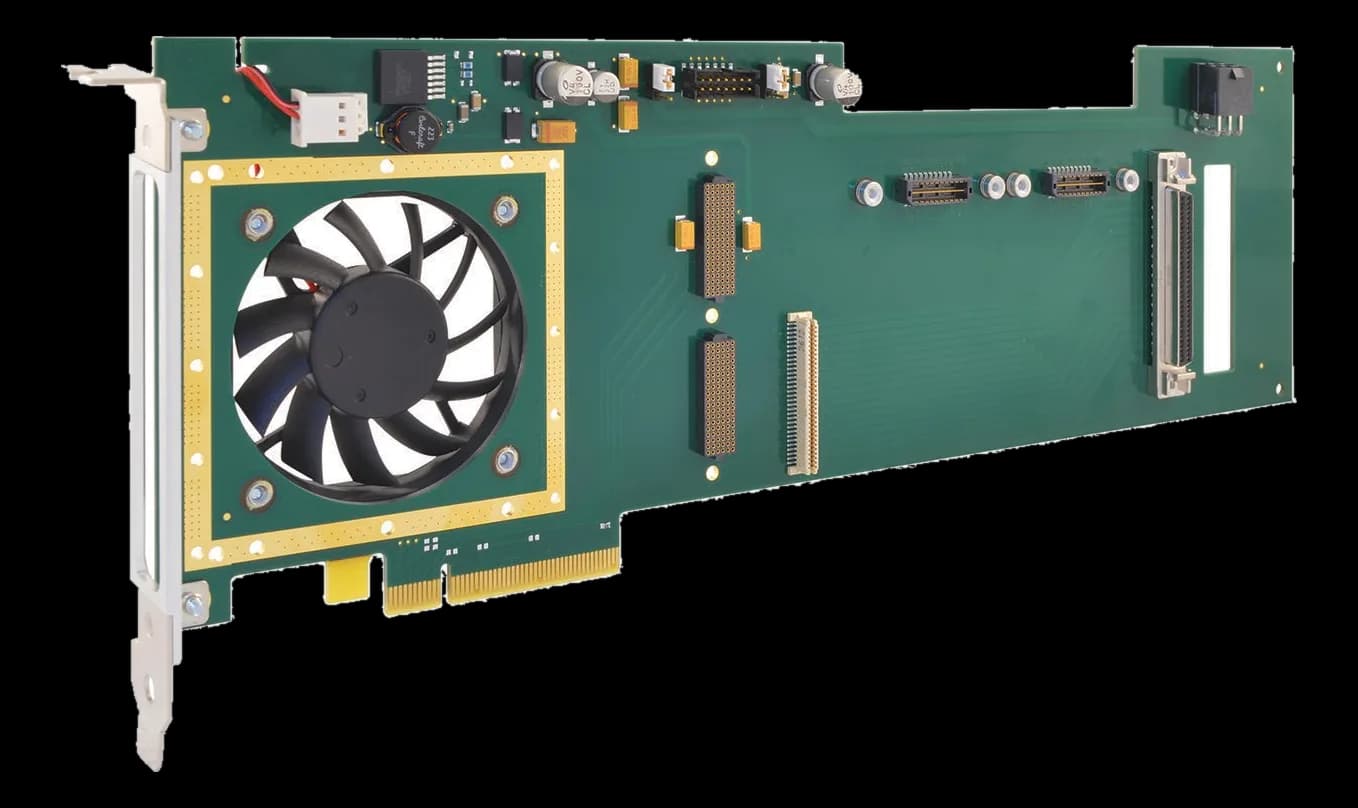

The board brings an XMC mezzanine module inside an industrial PC fitted with a PCI Express slot, keeping the high-speed serial link laid down by the standard. The rear MD68 connector collects 32 LVDS pairs coming from the P4 connector of the module.
The cooling fan is mounted on the solder side and can be removed when the installation has to take a single slot; an auxiliary 12 V supply is available on a dedicated connector.
At a glance
- Board function: Carrier
- Architecture standard: PCI Express
- Power input: DC V
Technical specifications
| Connectors | MD68(male)MD68(male · rear) |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express 8 Lane8-lane PCI Express interface |
| Power input | DC V |
|---|---|
| Power consumption | 3.24 W(+12V) |
| Dimensions | 10 × 106.68 × 312 mm |
|---|
| Storage temperature | -55–125 °C |
|---|
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
