APCe7012E-LFLow-profile PCIe carrier for one AcroPack or mini-PCIe module
- Manufacturer

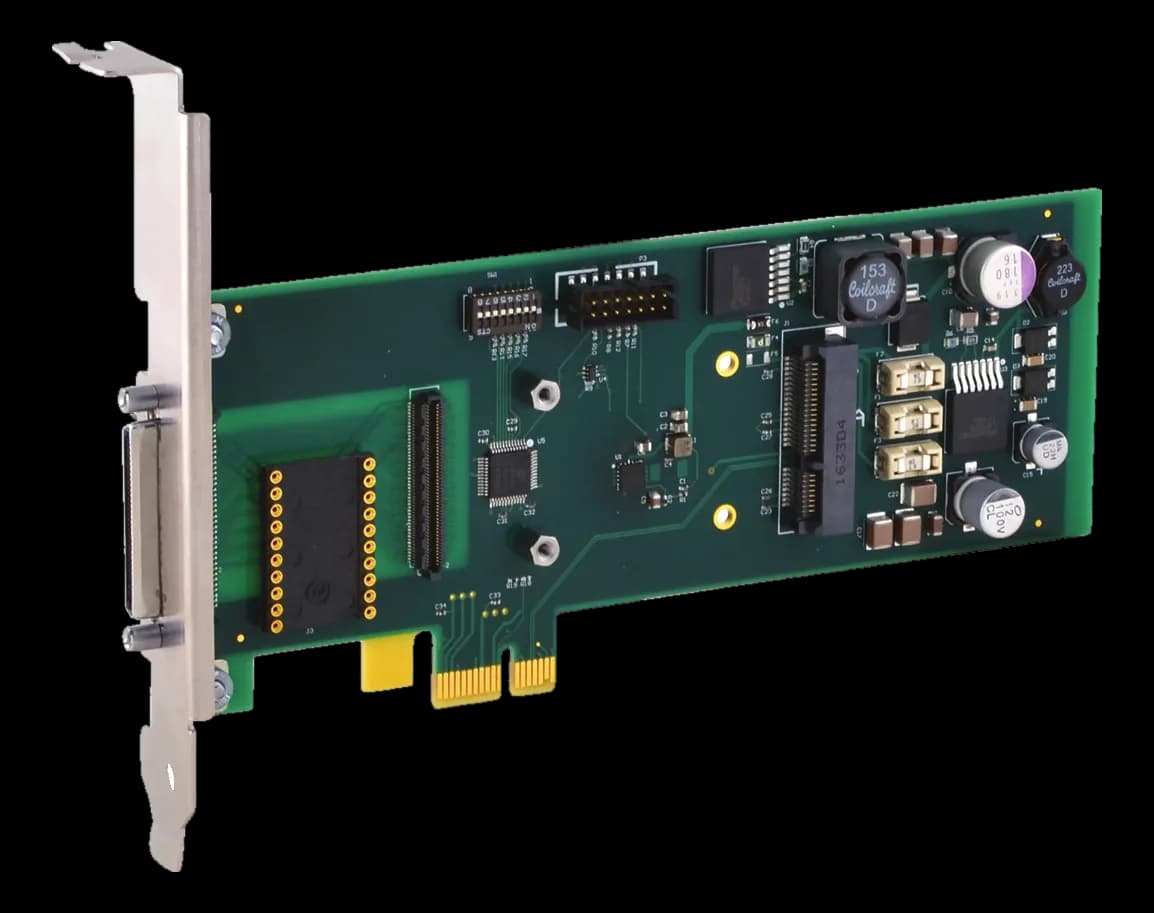

The board takes a low-profile PCIe slot and turns an AcroPack or mini-PCIe module into an I/O function of the industrial PC. Field signals leave through the 68-pin CHAMP connector on the panel, while a JTAG header stays reachable for programming the module FPGA.
Power towards the module is spread over fused rails and the board works between -40 and +85 °C, hence also in cabinets without climate control.
At a glance
- Board function: Carrier
- Architecture standard: PCI Express
- Supply voltage: DC 1.5/3.3/5/12 V (nominal, selectable)
- Power consumption: 0.3 W
- Operating temperature: -40–85 °C
Technical specifications
| Connectors | CHAMP |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | AcroPack carrier card for AcroPack ormeets or exceeds all written PCI Express specifications per revision 2.1x1 PCIe |
| Supply voltage | DC 1.5/3.3/5/12 V (nominal, selectable) |
|---|---|
| Power consumption | 0.3 W |
| Dimensions | 68.86 × 160 mm |
|---|
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -55–125 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
