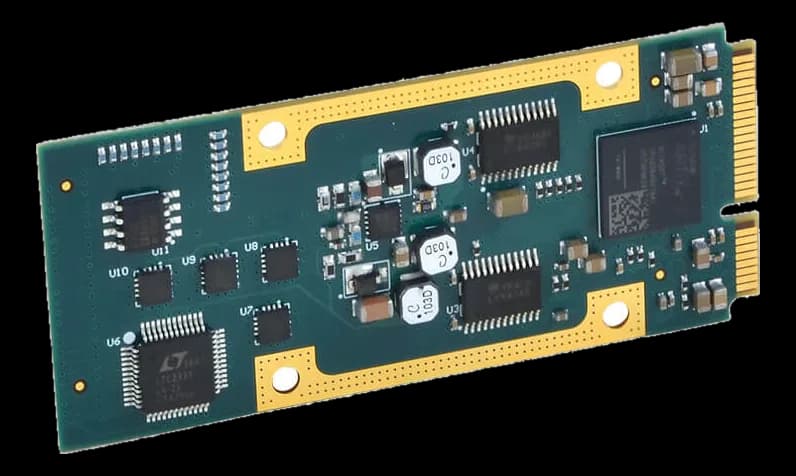

AP7308-channel analog and digital I/O AcroPack module with 32-bit counter/timer
- Manufacturer
- Configurations
- 2 available configurations
AP730 brings together in a single AcroPack slot the functions that normally occupy several modules: differential analog inputs, analog outputs, digital I/O and counting/timing. It mounts on AcroPack carriers in conduction-cooled embedded systems between −40 and 85 °C, with the AP-CC-01 kit above 70 °C.
What sets it apart is the density of functions per slot, not specialisation in a single one: 32 Mb of onboard flash store the factory calibration constants, while the software packages for Windows, VxWorks and Linux handle DMA transfers to the PCIe bus.
Available in two configurations: AP730E-LF with 16-bit DAC and AP731E-LF with 12-bit DAC.
At a glance
- 1026-sample FIFO on the ADC
- 16 bidirectional digital channels, configurable in groups
- 32-bit multi-function counter/timer
- 100-pin Samtec connector to the carrier
- Trigger from internal timer or external digital
Technical specifications
| FPGA / processing | Xilinx Artix-7 |
|---|
| Storage | 32Mb Flash Memory |
|---|
| Connectors | 100 pin Samtec connector |
|---|
| Channels | 8 |
|---|---|
| Digital I/O | 16 bidirectional input/output channels (direction configured in 8-channel groups) · Failsafe power-up and system reset |
| Isolation & signal | CMOS compatible thresholds |
| Acquisition specifications | 16-bit ADC with integral sample-and-hold and referenceADC 16-bit (LTC2333-16)Programmable FIFO threshold conditions for interrupts, DMA transfers, and flags |
| ADC resolution | 16 bit |
| DAC resolution | 12 bit(variant AP731E-LF)16 bit(variant AP730E-LF) |
| Trigger modes | External digital triggerInternal timer |
| FIFO depth | 1026 sample |
| Architecture standard | AcroPack |
|---|---|
| Board function | Clock / TimingAnalog and digital I/O |
| Bus interface | PCIe Bus Interface |
| Power input | 250mA typ., 300mA max. |
|---|
| Dimensions | 70mm long (19.05mm longer than the full-length mini PCIe card at 50.95mm) · the same as an mPCIe board at 30mm |
|---|
| Cooling | Conduction-cooled |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -55–100 °C |
| Certifications | CE |
|---|
| Operating systems | VxWorksWindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP730E-LF |
| AP731E-LF |
