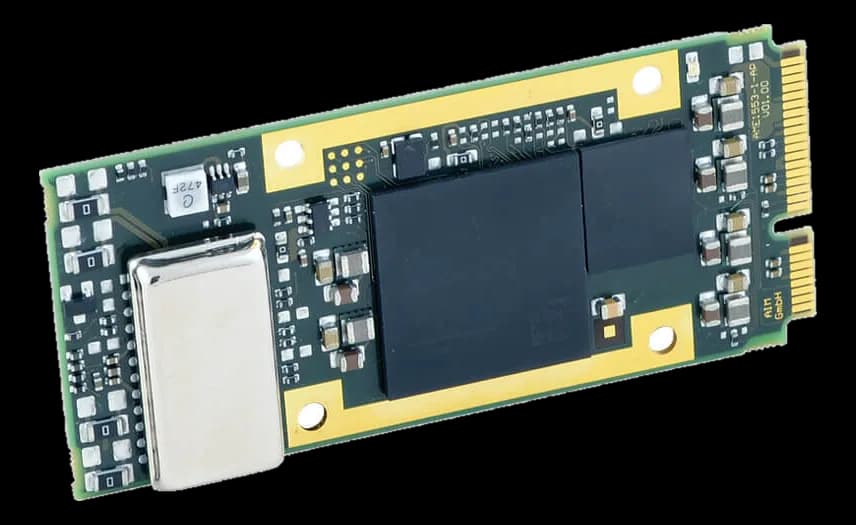

AP570AcroPack PCIe mezzanine module for MIL-STD-1553 avionics, dual redundant channel
- Manufacturer
- Configurations
- 2 available configurations
The AP570 is an AcroPack mezzanine module that brings Industry Pack format I/O onto a PCI Express interface (Release 2.0): it mounts on CompactPCI Serial, XMC, VPX or PCIe carriers and coexists with other AcroPack modules in the same COTS assembly for avionics.
The connection to the carrier runs through a 100-pin Samtec board-to-board connector, not through cabling. Alongside the 1553 bus there is an IRIG-B input with 46-bit absolute time tagging, open/ground discrete I/O at avionics level +35 V, trigger input and output and pins for the wired RT address; the DMA engine reduces PCIe bus occupancy and offloads the host CPU. Bus coupling is transformer-based, with a direct coupled option.
Two configurations: AP571-000, single function channel (BC + BM or multi-RT + BM), and AP572-000, full multi-function with simultaneous BC, multi-RT and BM.
At a glance
- 70 x 30 mm form factor
- 128 MB of onboard global RAM
- SoC with two 400 MHz processors
- BSP for VxWorks, Linux and Windows
- Optional AP-CC-01 conduction-cooled kit
Technical specifications
| Processor | High performance RISC onboard · SoC device with 2x 400MHz processors. |
|---|
| Memory | 128MB RAM. |
|---|
| Other I/O | 1 BC/BM trigger Input and 1 BC/BM trigger output. |
|---|
| Digital I/O | 4 bi-directional open/ground +35V avionics discrete I/O signals. · 2 additional LVTTL digital discrete inputs.6 signals above can be used for hard-wired RT address input support. |
|---|---|
| Avionics bus | MIL-STD-1553 |
| Architecture standard | AcroPackPCI Express |
|---|---|
| Board function | Avionics (ARINC / MIL-STD-1553) |
| Bus interface | Compatible with PCI-Express Standard (Release 2.0). · PCIe bus interface |
| Dimensions | 70mm x 30mm. · the same as an mPCIe board of 30mm |
|---|
| Cooling | Conduction-cooled(optional) |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -55–125 °C |
| Operating systems | WindowsVxWorksLinux |
|---|
| Controller or bridge type | 1× MIL-STD-1553 Encoder/decoder with full error detection bus support. |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP571-000 |
| AP572-000 |
